Westgate UHX 50W/80W/100W/150W LED UFO High Bay, 5000K, 480V

Ideal for general site lighting, alleys, loading docks, doorway, pathway, parking areas, warehouses and storage buildings.

Features

• Finish: Black
• Wattage: 50W / 80W / 100W / 150W Selectable

• Voltage: 480V
• Color Temperature: 5000K
• Lumens:  8000 / 9600 / 16000 / 24000
• CRI: >80
• Dimming: 0-10V
• Beam Angle: 90°
• LED: LUMILEDS 2835
• Multi Power (Selectable Switch Located On The Driver Housing)
• Housing: ADC12 Aluminum Heat Sink, Outdoor Powder Coating Finish
• Optical Lens: PC Materials High Light Transmittance, Anti-UV, Fire-Resistant
• Aluminum LED Board: High conductive, waterproof, aging resistant, salt mist resistance, long-life
• IP 65 rated

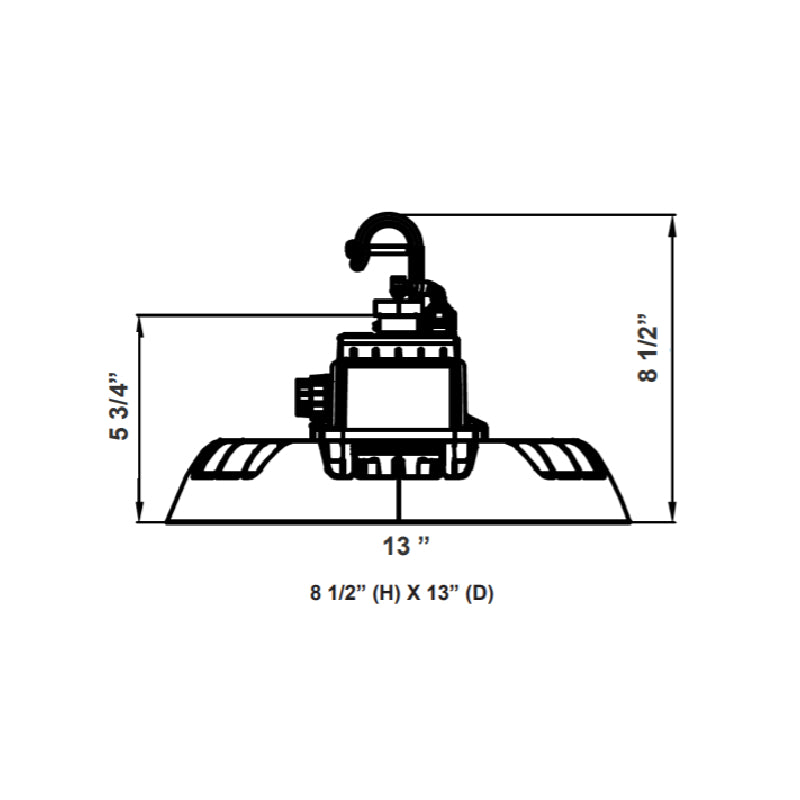

Dimension

• Diameter: 13"
• Height: 8.5"

Estimated Life

• 50,000 hours

Warranty

• 5-Year Warranty

Documents

• Spec Sheet
• Instruction Sheet
• UHX-150W .IES
