Westgate SCXA2 4-ft 20W/30W/40W LED Architectural Optic & Combined-Distribution Linear, CCT Selectable

The SCXA series offers the best and the most comprehensive selection for linear lighting. The various available lengths and widths allow the creation of the desired shape to elevate the areas aesthetics to a unique and modern look while providing an impressive illumination for the occupants. Ideal for, retail locations, offices, lobbies, conference rooms, reception areas, hallways, educational facilities, hotels, and restaurants.

Features

• Finish: Black, Matte White

• Wattage: 20W/30W/40W

• Voltage: 120-277V
• Color Temperature: 3000K/3500K/4000K Selectable
• Lumen: 2000/3000/4000

• CRI: ≥ 80
• Dimming: 0-10V dimming

• Beam Angle: 104.8°(H) x 100.5°(V)
• 7.5" Optic Ends
• LED Superior Architectural Lights
• Seamless Linkable Linear Lighting System
• Opal Polycarbonate Lens-Direct (DOWN) Lighting
• Lens Type: Opal Polycarbonate Lens
• Low Profile Modern Design
• Aluminum Housing
• Lens Snaps into Housing
• Mounting Options: Surface, Suspended, Wall, Recessed

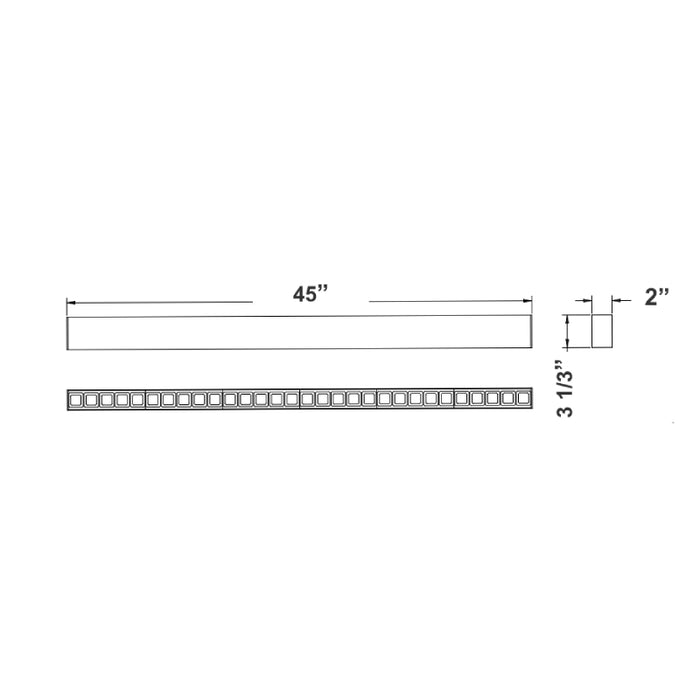

Dimensions

• Length: 45"
• Width: 2"

• Height: 3.33"

Suspension Mounting Hardware

• Powered       : SCL-CS1P-6FT
• Non-Powered: SCL-CS1-6FT

Estimated Life

• 50,000 hours

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet
