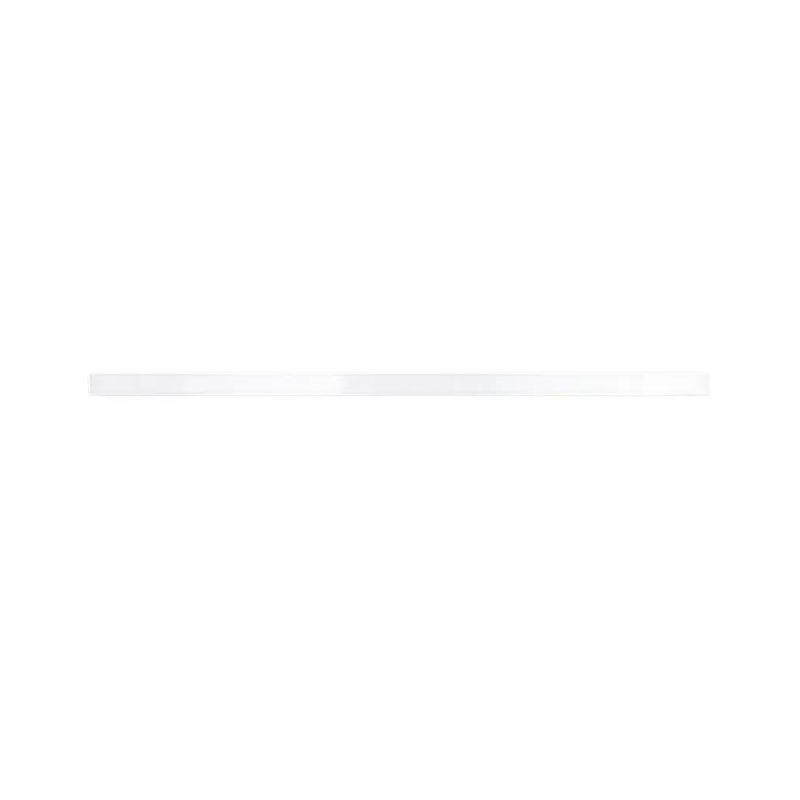

Westgate SCX6 8-ft 80W/100W/120W LED Linear Light, CCT Selectable

Features

• Finish: Matte White

• Lens: White Louver
• Material: Aluminum Housing

• Wattage/Lumens: 80W / 8400 lm, 100W / 11000 lm, 120W / 13800 lm

• Voltage: 120-277V
• Color Temperature: 3000K / 3500K / 4000K / 5000K Selectable
• CRI: 80+
• Dimming: 0-10V dimming

• Beam Angle: 104.8° x 100.5°

• Special White-Reflector Indirect Lens
• Lens Snaps into Housing
• Seamless Linkable Linear Lighting System

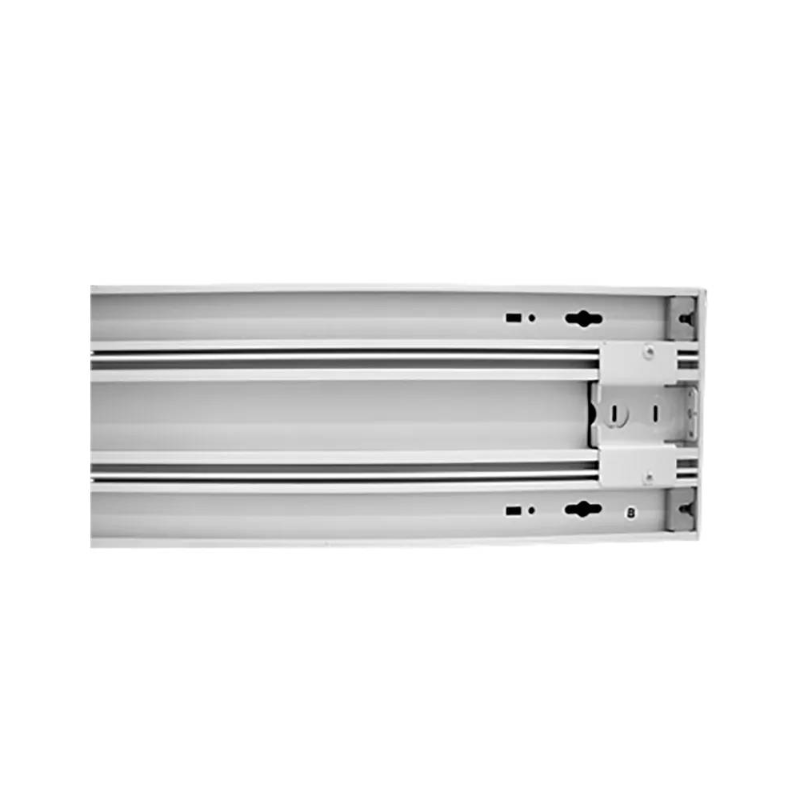

• Adjustable Suspension Brackets Provided on Top of The Fixtures
• Mounting Options: Surface, Suspended, Wall, Recessed (Hardware Sold Separately)
• Make Different Connections Via T/L/X Joints on Both Ends
• IP54 rated


Dimensions

• Length: 97.17"
• Width: 6"

• Height: 6"

Suspension Mounting Hardware

• Powered       : SCL-CSY1P-6FT
• Non-Powered: SCL-CSY1-6FT

Estimated Life

• 50,000 hours

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet
