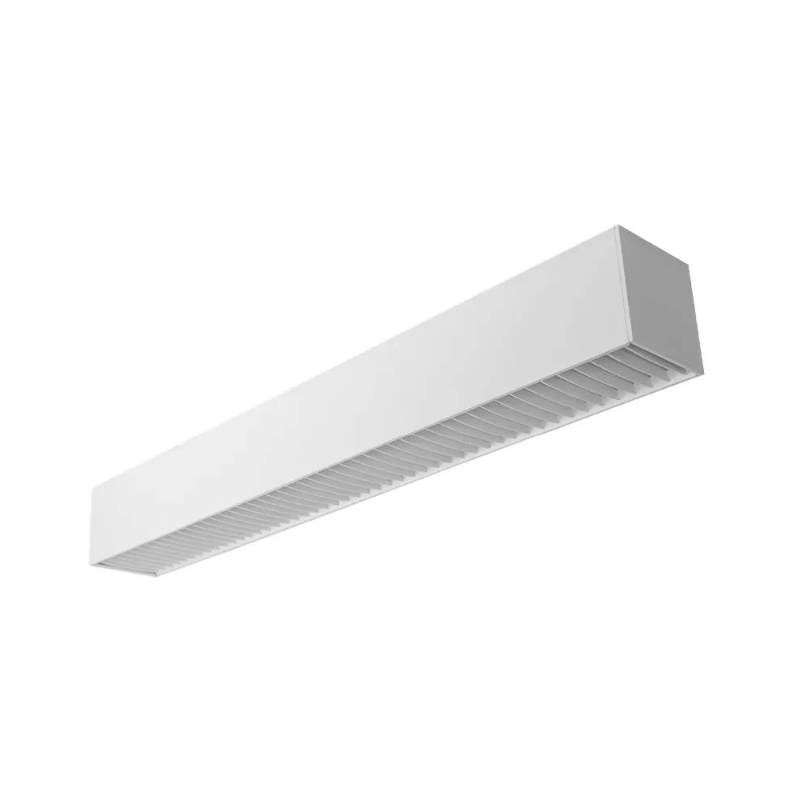

Westgate SCX6 4-ft 40W/50W/60W LED Linear Light, CCT Selectable

Features

• Finish: Matte White

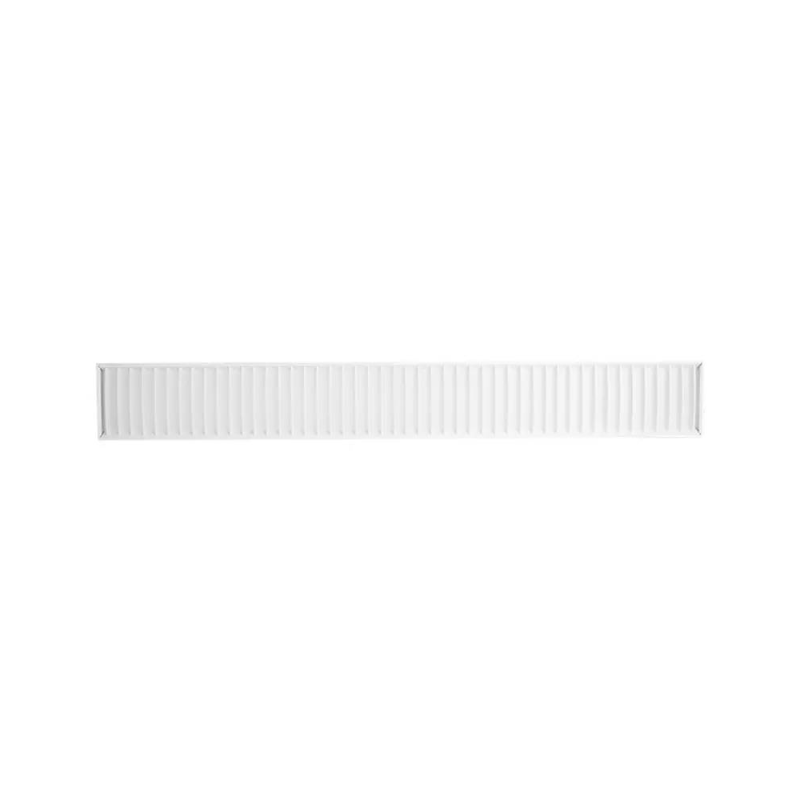

• Lens: White Louver
• Material: Aluminum Housing

• Wattage/Lumens: 40W / 4200 lm, 50W / 5500 lm, 60W / 6900 lm

• Voltage: 120-277V
• Color Temperature: 3000K / 3500K / 4000K / 5000K Selectable
• CRI: 80+
• Dimming: 0-10V dimming

• Beam Angle: 104.8° x 100.5°

• Special White-Reflector Indirect Lens
• Lens Snaps into Housing
• Seamless Linkable Linear Lighting System

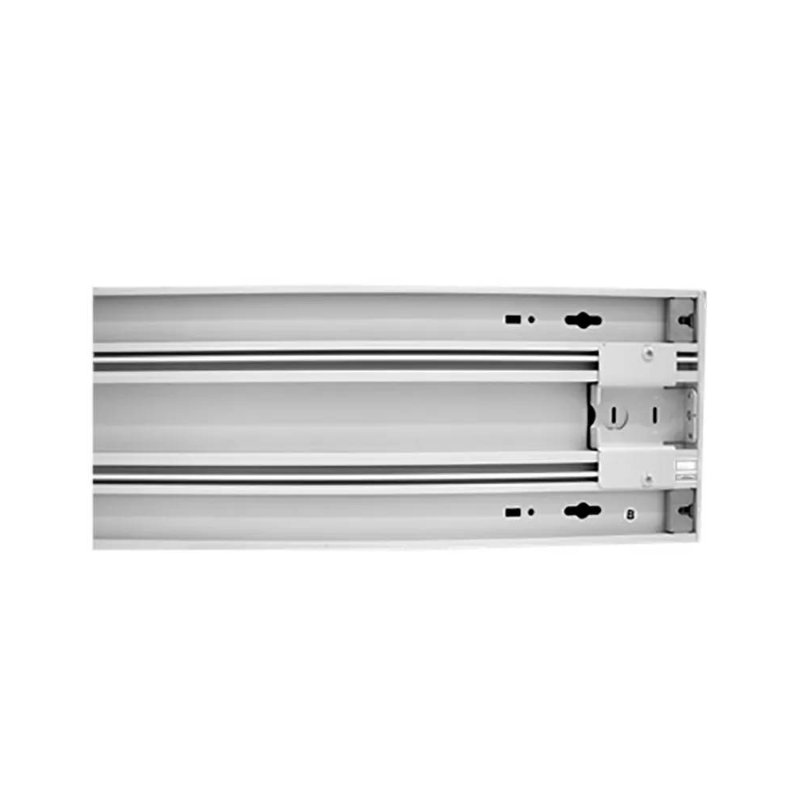

• Adjustable Suspension Brackets Provided on Top of The Fixtures
• Mounting Options: Surface, Suspended, Wall, Recessed (Hardware Sold Separately)
• Make Different Connections Via T/L/X Joints on Both Ends
• IP54 rated


Dimensions

• Length: 47.33"
• Width: 6"

• Height: 6"

Suspension Mounting Hardware

• Powered       : SCL-CSY1P-6FT
• Non-Powered: SCL-CSY1-6FT

Estimated Life

• 50,000 hours

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet
