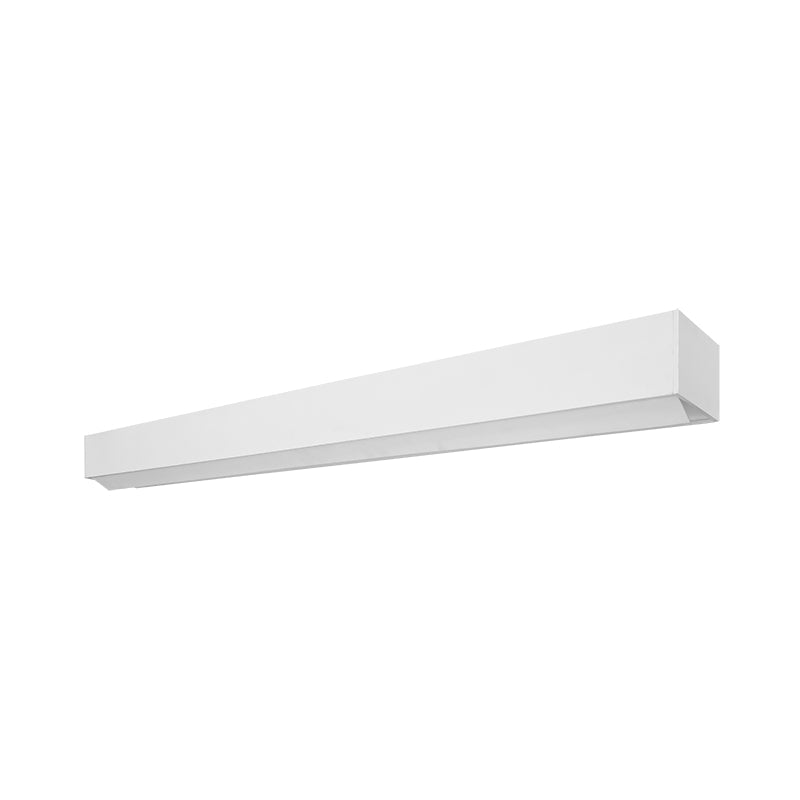

Westgate SCX4 2FT 20W LED Wall Wash Linear Light, CCT

Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.

Features

• Wattage: 20W
• Voltage: 120-277 VAC
• CCT Selectable: 3000K/3500K/4000K/5000K (Selectable switch inside fixture)
• Color Temperature/Lumens:
• 3000K/2314 lm
• 3500K/2511 lm
• 4000K/2418 lm
• 5000K/2438 lm
• CRI: ≥80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Dimming: 0~10V Dimmable
• Lens Type: Opal Polycarbonate Lens
• Low profile design
• Aluminum housing with matte white finish
• Lens Snaps into Housing

• Mounting Options: Surface, Suspended, Wall, Recessed
• Adjustable Suspension Brackets Provided on Top of The Fixtures

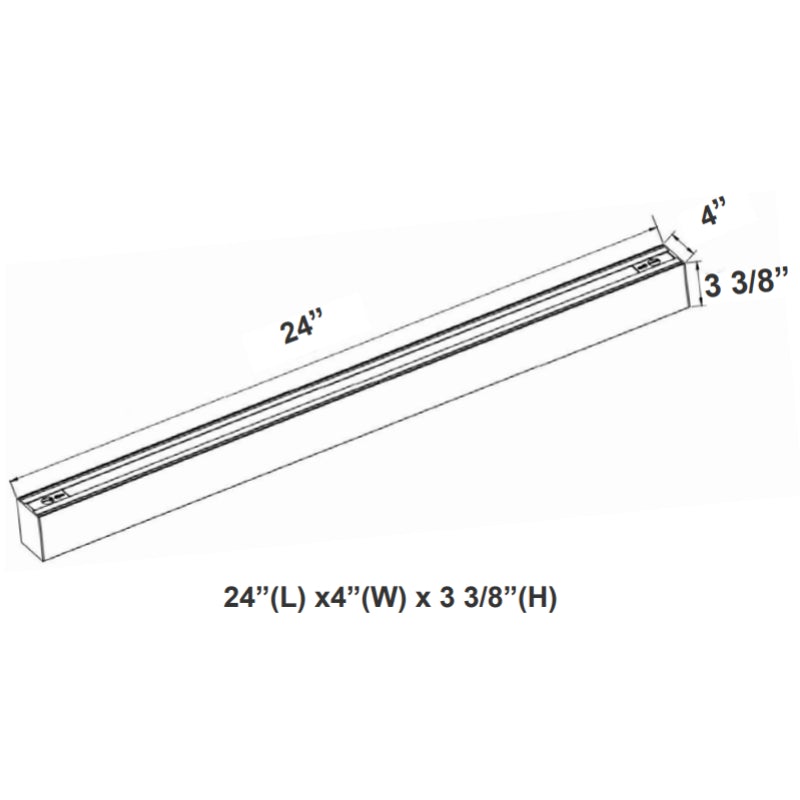

Dimensions

• Length: 24"

• Width: 4"
• Height: 3-3/8"

Document

• Spec Sheet
• Instruction Sheet
