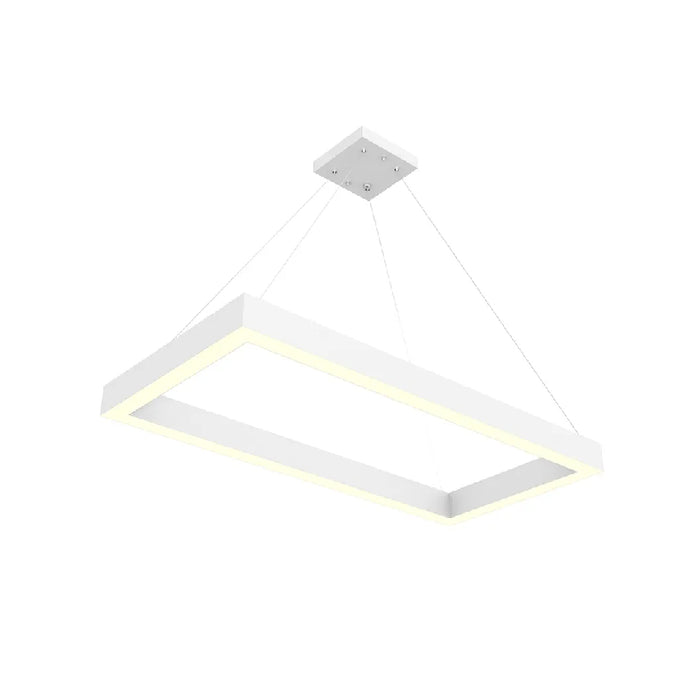

Westgate SCX 2X4 60W/90W/120W Linear Light, CCT Selectable

The SCX series offers the best and the most comprehensive selection for linear lighting. The various available lengths and widths allow the creation of the desired shape to elevate the areas aesthetics to a unique and modern look while providing an impressive illumination for the occupants.

Features

• Finish: Matte White

• Wattage: 60W/90W/120W

• Voltage: 120-277V
• Color Temperature: 3000K/3500K/4000K Selectable
• Lumen: 6600/9900/13200

• CRI: ≥ 80
• Dimming: 0-10V dimming

• Beam Angle: 104.8°(H) x 100.5°(V)
• Lens Type: Opal Polycarbonate Lens

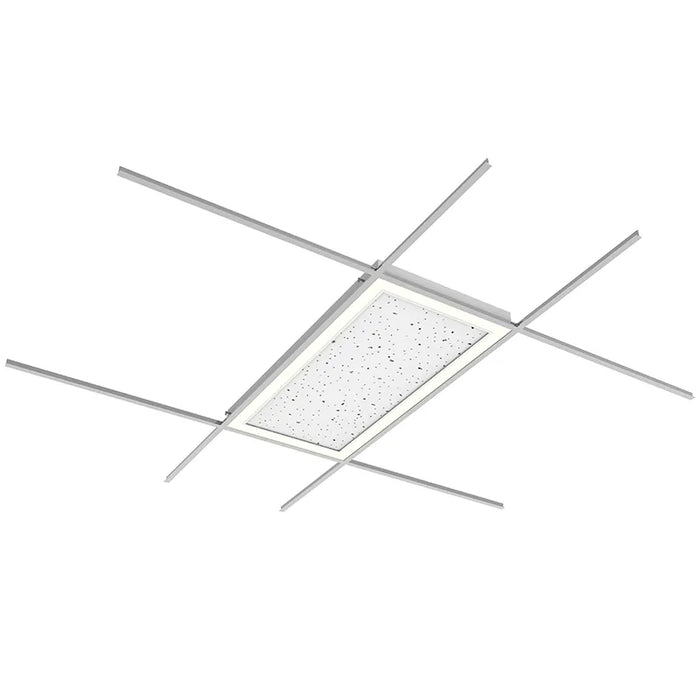

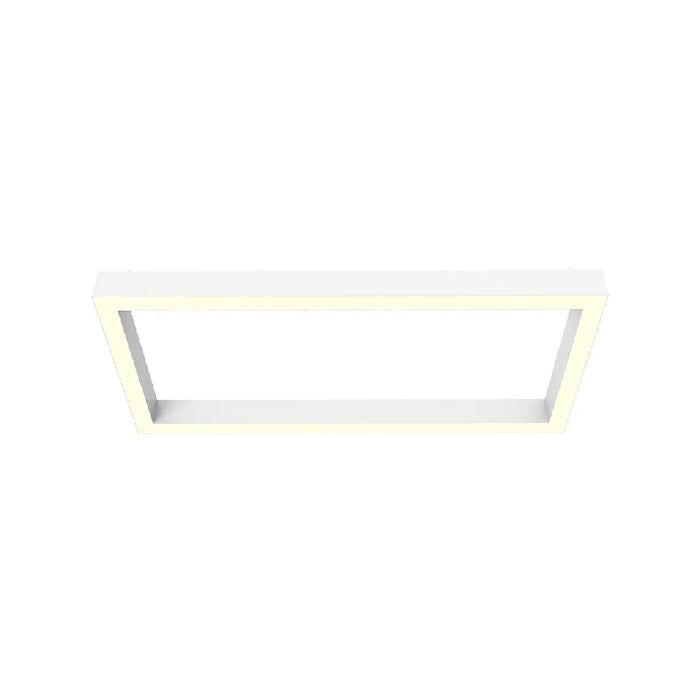

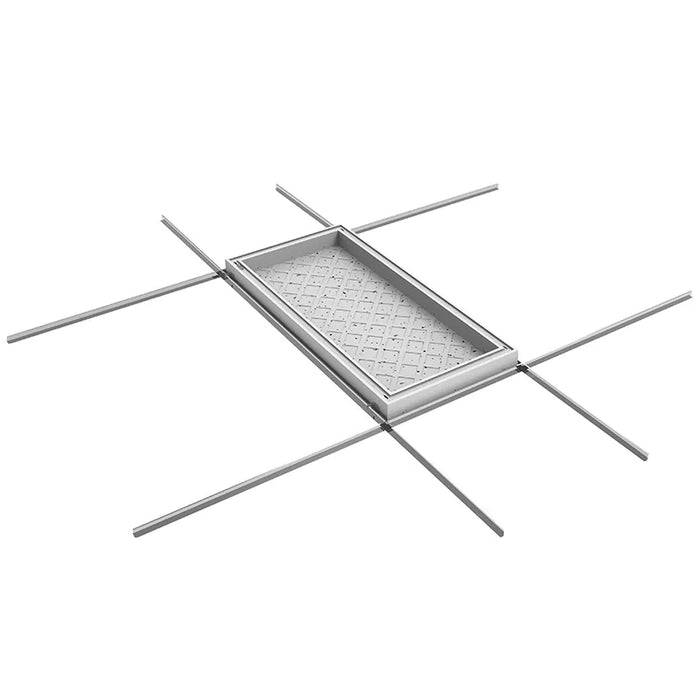

• Mounting Options: Surface, Suspended, Wall, Recessed
• Lens Snaps into Housing

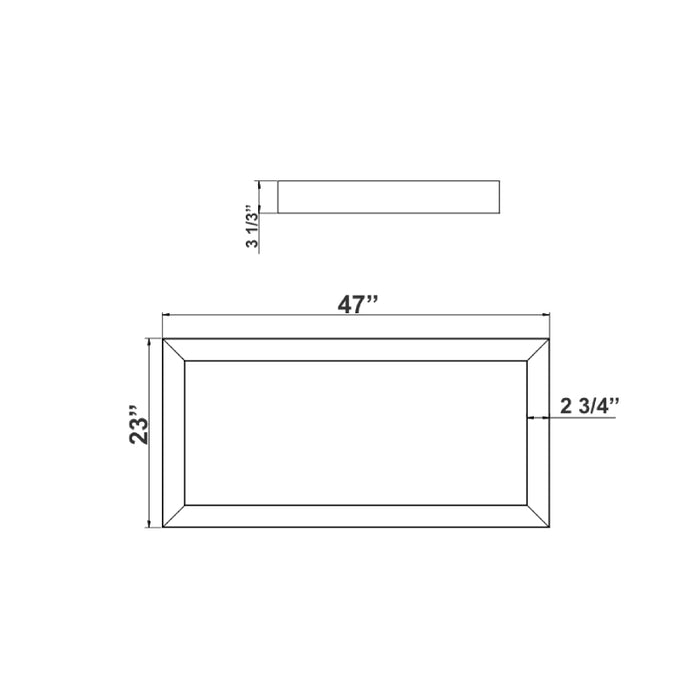

Dimensions

• Length: 47"
• Width: 23"

• Height: 3.33"

Suspension Mounting Hardware

• Powered       : SCL-CS1P-6FT
• Non-Powered: SCL-CS1-6FT

Estimated Life

• 50,000 hours

Warranty

• 5-year warranty

Documents

• Spec Sheet
• Instruction Sheet
