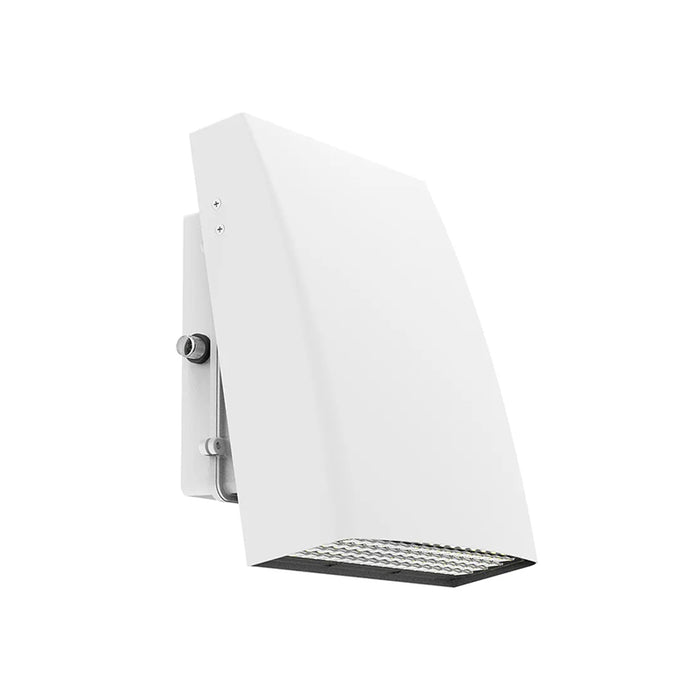

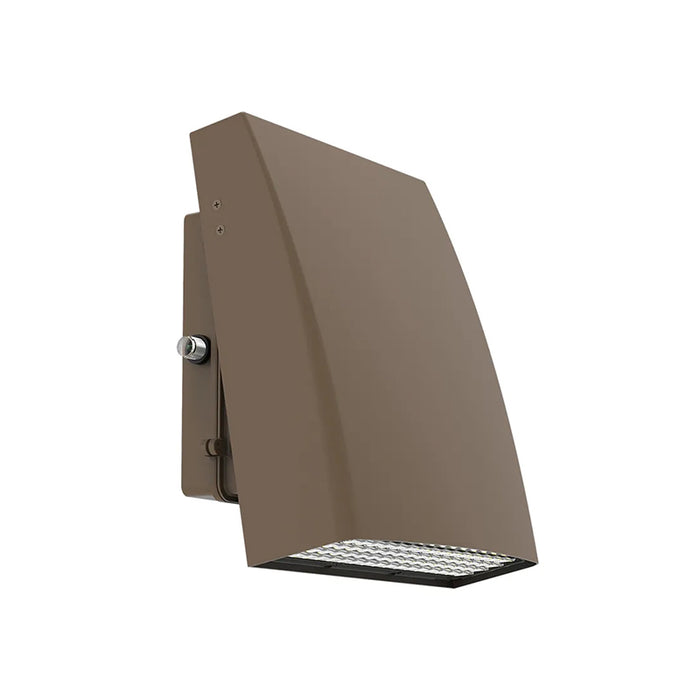

Westgate LWAX-SM 12W Gen. 2 Adjustable LED Wall Pack

Ideal for general site lighting, alleys, loading docks, doorway, pathway, and parking areas. Great for use with motion sensors or another instant on/off controls.

Features

• Finish: Dark Bronze, White
• Wattage: 12W

• Voltage: 120-277V
• Color Temperature: 3000K, 4000K, 5000K
• Lumen: 1500

• CRI: 80+
• Dimming: 0~10V Dimmable
• Beam Angle: 80° x 100°
• Die-Cast Aluminum With Powder Coat Finish
• DC Button Photocell Included
• High Light Transmittance, Anti-UV and Fire Resistant Shatterproof PC Lens
• Can Be Installed Facing Up (As An Uplight)
• Full Cutoff, Dark Sky Compliant
• IP65 Rated

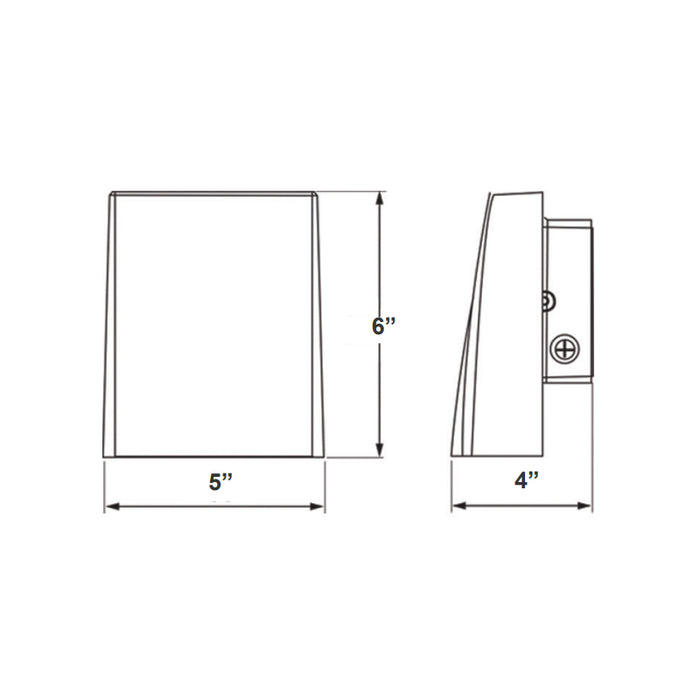

Dimensions

• Width: 5"

• Height: 6"
• Depth: 4"

Estimated Life

• Rated life: 70,000 Hrs

Warranty

• 7-year warranty

Documents

• Spec Sheet

• Instruction Sheet
