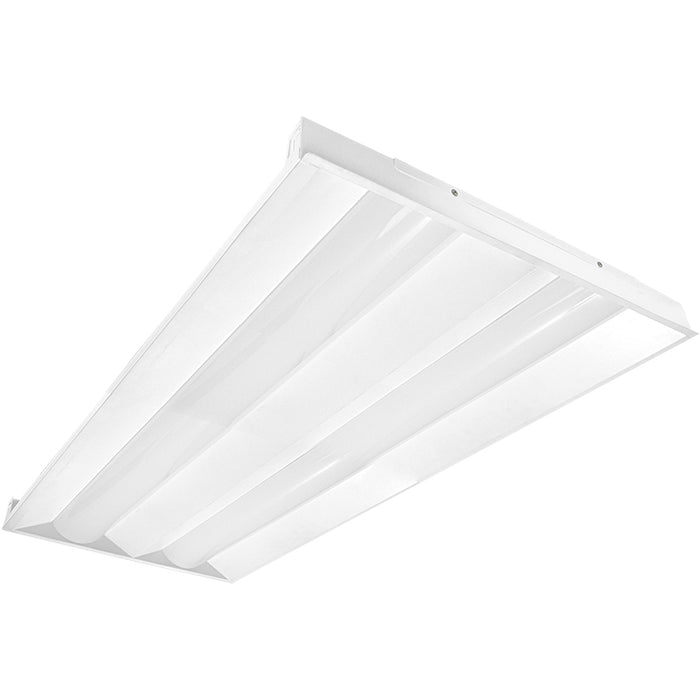

Westgate LTRD 2X4 30W/40W/50W LED Dual Lens Troffer, CCT

Ideal for both new construction and remodel/replacement of fluorescent troffers in commercial office spaces, schools, healthcare facilities and retail merchandising areas.

Features

• Wattage: 30W/40W/50W
• Finish: White
• Voltage: 120-277 VAC
• Color Temperature: 3500K/4000K/5000K
• Lumens: 3750/5000/6250
• CRI: 80+
• Dimming: 0~10V Dimmable
• Lens: Polycarbonate
• High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Selectable Multi-CCT & Power Switches Inside The Driver Box
• Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster Than Die Cast Steel
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare

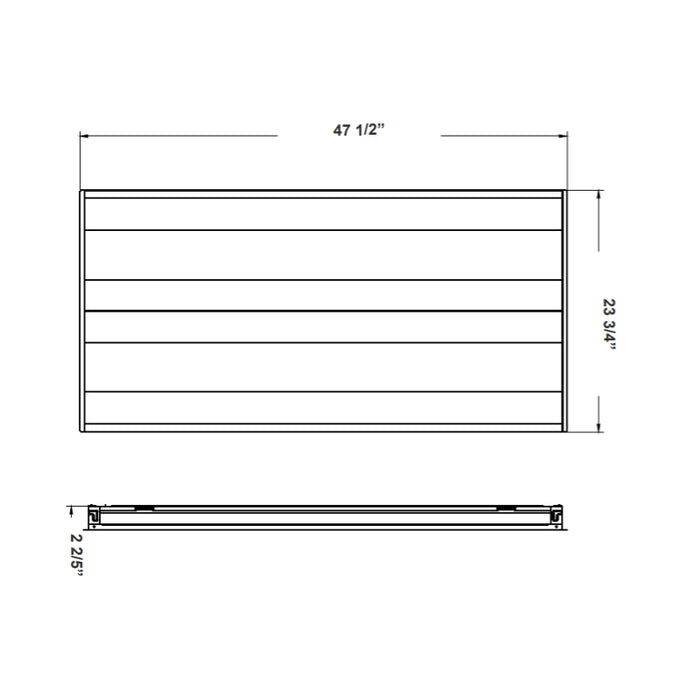

Dimension

• Length: 47-1/2"
• Width: 23-3/4"
• Height: 2-2/5"

Documents

• Spec Sheet
• Instruction Sheet
