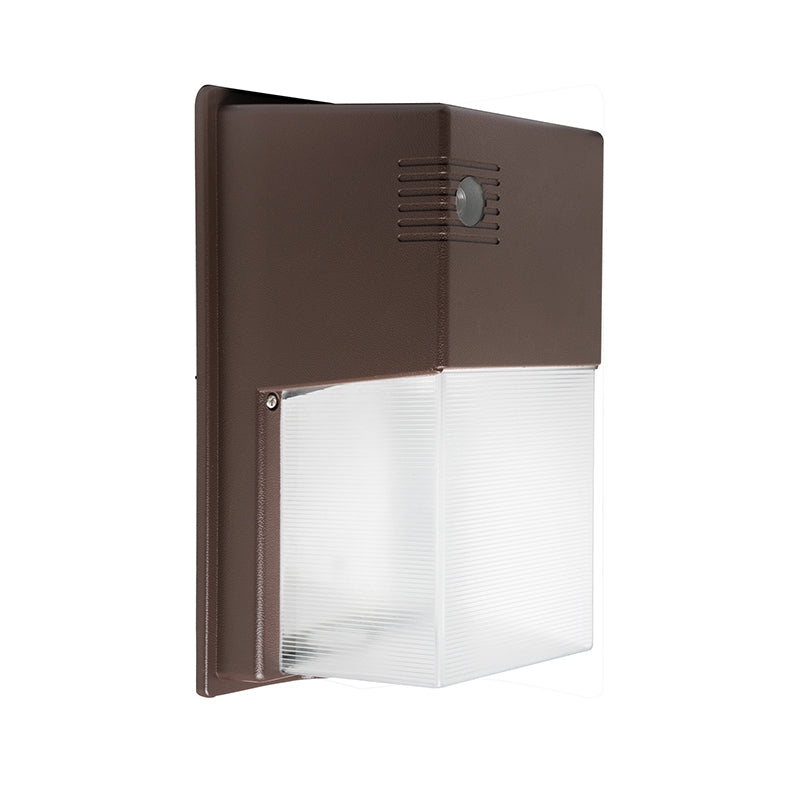

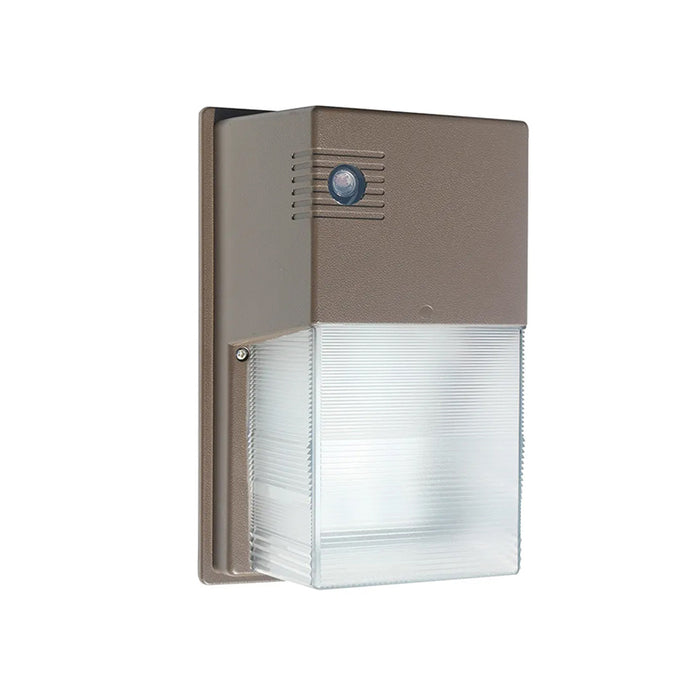

Westgate LSWX 5W/10W/20W/30W LED Non-Cutoff Wall Pack with Photocell

Features

• Finish: Dark Bronze
• Wattage: 5W / 10W / 20W / 30W Selectable

• Voltage: 120-277V

• Color Temperature: 3000K, 4000K, 5000K
• Lumens: Up to 3600
• CRI: 70+
• Dimming: 0-10V dimming
• Beam Angle: 90° x 110°
• Multi-Power (The switch is inside the fixture)
• Construction: Polycarbonate lens and housing, Die-Cast Aluminum LED board
• Non-cutoff optics ideal for maximum light distribution
• Includes pre-wired photo electric control (Dusk to Dawn Photocell), 120 Volt, Removable

• Photocell Response Time: Maximum 3 Seconds
• Threaded 1/2” Knockout Provided on Top Section of the Back
• Vandal resistant housing ideal for exposed areas
• Ideal for general site lighting, loading docks, doorway, pathway and parking areas
• IP 54 rated

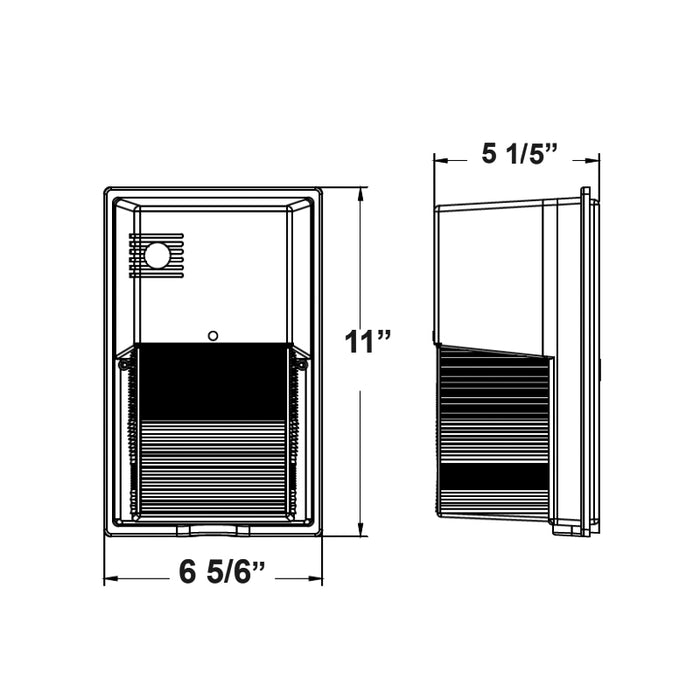

Dimensions

• Length: 11"
• Width: 6.83"

• Height: 5.2"

Estimated Life

• 70,000 hours

Warranty

• 7-Year Warranty

Documents

• Spec Sheet
• Instruction Sheet
