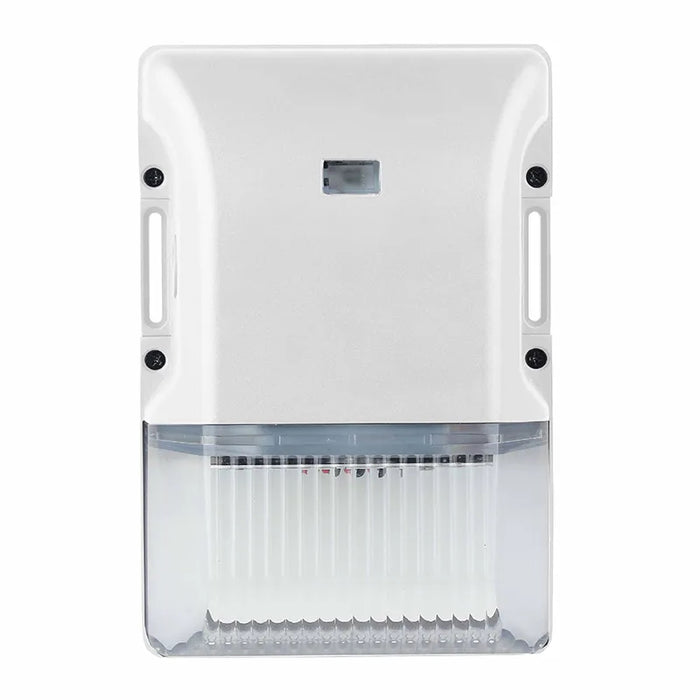

Westgate LESW 8W/12W/15W LED Non-Cutoff Wall Pack w/ Photocell, CCT

LED Non-Cutoff Wall Pack with Photocell is ideal for general site lighting, loading docks, doorway, pathway and parking areas.

Features

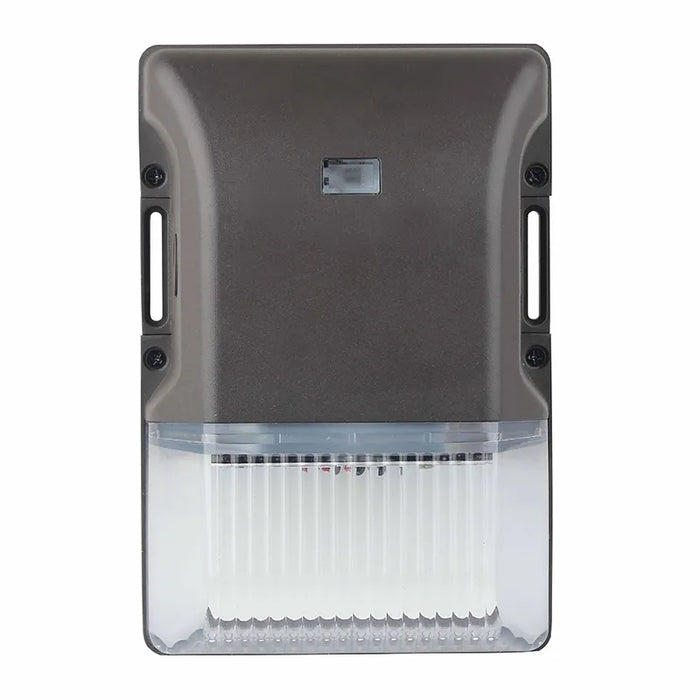

• Finish: Bronze, White
• Wattage: 8W / 12W / 15W Selectable

• Voltage: 120-277V
• Color Temperature: 3000K / 4000K / 5000K Selectable

• Lumens: 1080 / 1650 / 2025
• CRI: ≥70
• Dimmable: 0-10V Dimming
• Beam Angle: 100°
• Multi-Power (The Switch is inside the fixture)
• Construction: Polycarbonate Housing & Lens, Die-cast aluminum Backplate
• Polycarbonate Optic Lens
• Includes Pre-wired Photo Electric Control (Dusk to Dawn Photocell), 120 Volt, Removable
• Photocell Response Time: Maximum 3 Seconds
• Non-Cutoff Optics Ideal for Maximum Light Distribution
• IP 65 rated

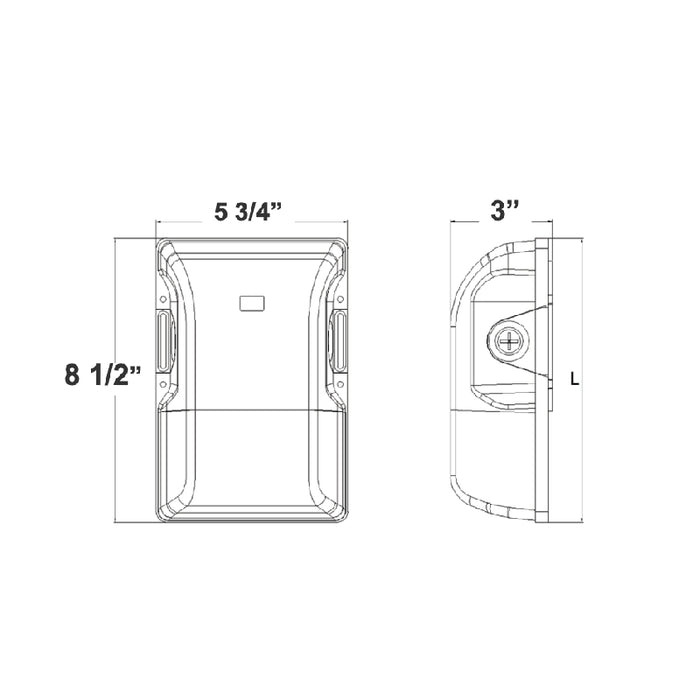

Dimensions

• Width: 5.75"
• Height: 8.5"

• Depth: 3"

Estimated Life

• 70,000 Hours Rated Life

Warranty

• 7-Year Limited Warranty

Documents

• Spec Sheet
• Instruction Sheet
