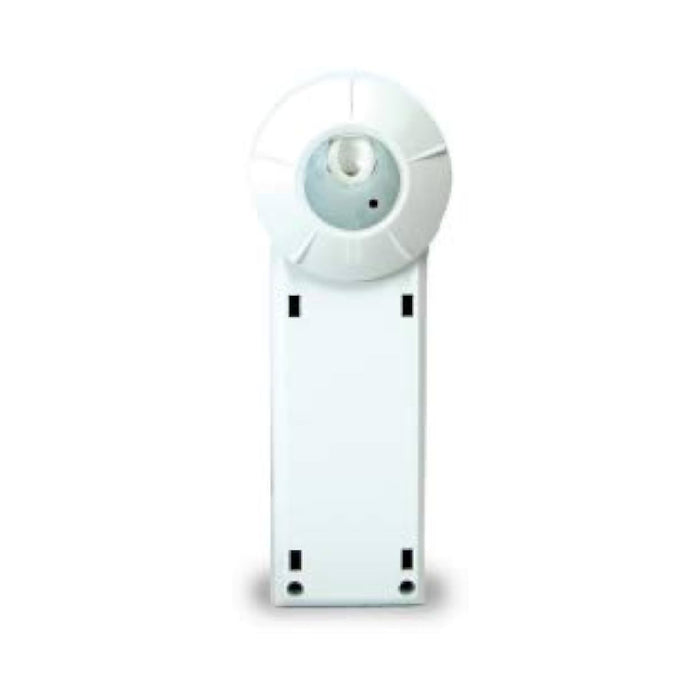

Wattstopper LMLS-500 Open Loop Multiple Zone DLM Photosensor
SKU LMLS-500
Original price
$0.00
-
Original price
$0.00
Original price
$394.88
$394.88
-
$394.88
Current price
$394.88
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
The LMLS-500 is an open loop, multi-zone photosensor that measures the daylight contribution in order to automatically switch or dim up to three zones of lighting.
Features
- Voltage: 24VDC from DLM local network
- Amperage: 7 mA
- Sensor Type: Daylight
- Spatial response: 60º
- Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network
- Test mode override of programmed time delay allows easy verification of selected settings
- Load status verification allows confirmation and testing of controlled load
- Infrared (IR) transceiver for wireless configuration and control
- Compatible with DLM wall switches for manual override, if desired
- LED status indicators
- Mounting options for toplit or sidelit applications
Dimensions
- Length: 3.9"
- Width: 1.5"
- Height: 0.77"
