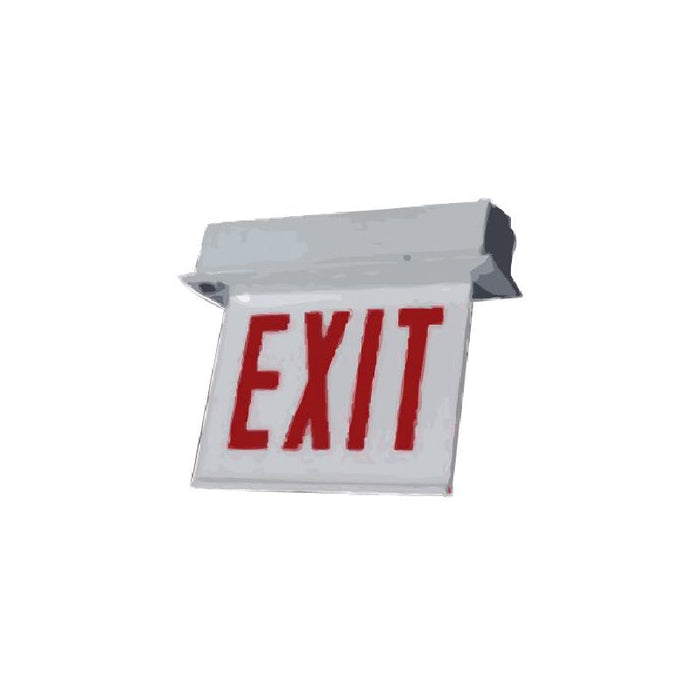

Sure-Lites ECHX Chicago Edge-Lit LED Exit Sign Trim, Recessed Mount

The Sure-Lites Chicago Edge-Lit (ECHX) surface and recessed mount exit sign provides an attractive yet easy to install universal edge-lit exit sign that is Chicago Code Compliant. The crystal clear wedge shape lens panel with white background standard provides excellent light distribution, exit visibility and easy installation. Long life, energy efficient LED lamps reduce energy costs and eliminate routine lamp maintenance.

Features

• Exit Housing Sold Separately
• Trim Finish: Brushed Aluminum, White
• Face: Single, Double
• Mounting: Recessed
• Arrow Options: No Arrow, Arrow Right (Single Face only), Arrow Left (Single Face only), Double Arrow, Arrow Right/Left (Double Face only)
• Chicago Code & Plenum Approved
• Injection molded, UV stabilized high impact, silk screened acrylic panels
• Bright red exit letter colors
• Panels customized with full stroke arrows for selected directional indicators
• White insert background included with single or double face exit panels
• Edge reflector for optimized efficiency and visibility

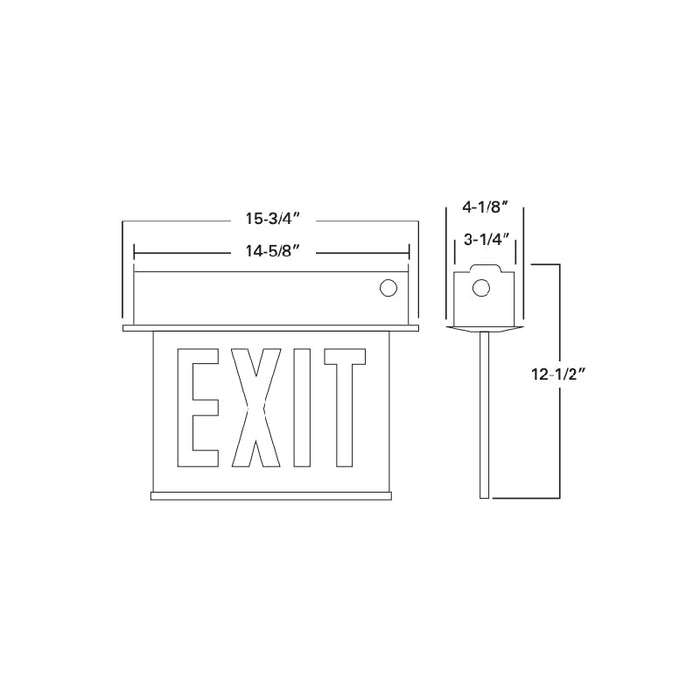

Dimensions

• Width: 15.75"
• Height: 12.5"

Warranty

• 5-Year fixture Warranty
• Prorated 7-year battery warranty

Documents

• Spec Sheet
