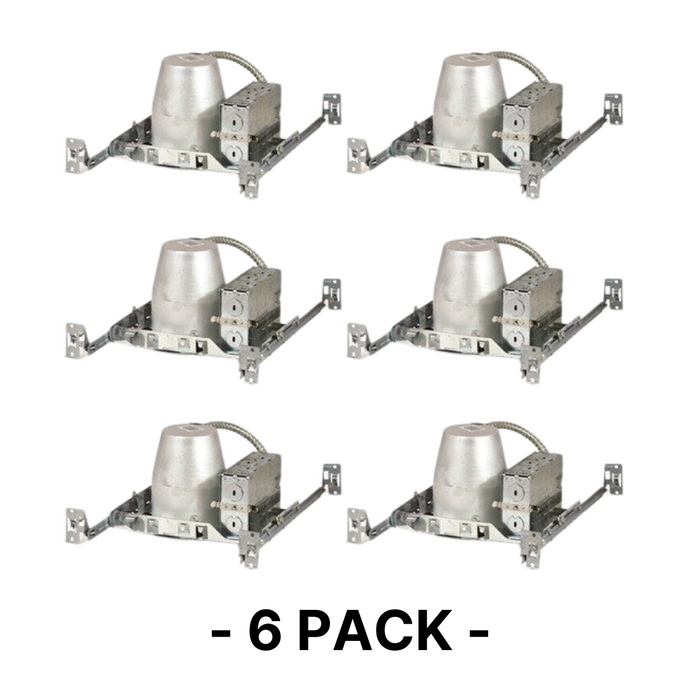

Nora 4" IC Air-Tight LED Dedicated New Construction Housing

Features

• Housing only, Trim sold separately
• "IC" Housings are direct contact rated; no minimum clearance is required
• Housing adjusts from 3/8" to 7/8"
• Bar hangers are adjustable from 13-3/4" to 24-1/2" and can be repositioned 90º
• Junction box is listed for through branch circuit wiring and contains five 1/2", two 3/4" knockouts, and four ROMEX® pryouts with strain relief
• 90 minute battery back-up must be ordered and installed as a self contained kit set apart from the housing
• Quick Connector provided

Dimensions

• Length: 8.5"
• Width: 6"
• Height: 5.75"
• Ceiling Cut-out: 4.38"

Documents

• Spec Sheet
• Instruction Sheet
