Metalux Achieva Recessed 24ARS 2x4 LED Center Basket Troffer w/ WaveLinx Lite Sensor, Selectable CCT & Lumens 120-277V

The Achieva Recessed Selectable troffer offers selectable lumen output and color temperature with a simple, easy to access toggle switch. The ultra slim 1.5" design fits into the shallowest of plenums and offers an upgraded center basket aesthetic.

Features

• Finish: Matte White
• Wattage: Up to 47.3W
• Color Temperature: 3500K/4000K/5000K
• Voltage: 120-277V
• Lumens: Up to 6254
• CRI: 80
• 0-10V dimming to 5% standard with 120-277V UNV
• Shallow plenum - 1.5” depth fits the most challenging spaces
• Fully assembled driver integrated without exposed wires in the plenum
• Integrated grid clips with holes for retaining wire and end hole to enable secure attachment to the grid where required
• WaveLinx Lite Wireless Sensor
• Sensor Integrated into end cap

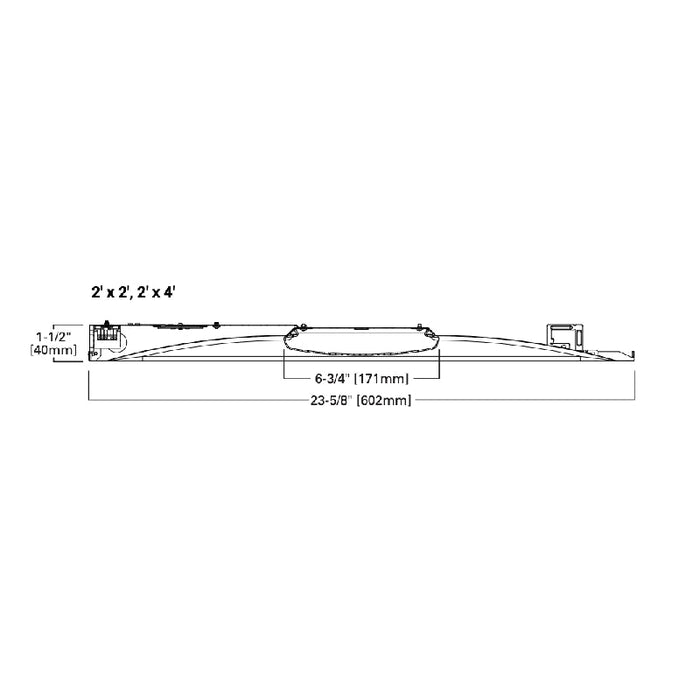

Dimensions

• Length: 47.7"
• Width: 23.63"
• Height: 1.5"
• Weight: 11.3 lbs

Estimated Life

• TM21 life at 60,000 hours up to L94 and calculated L70 exceeds 290,000 hrs

Warranty

• 5-Year Limited Warranty

Document

• Spec Sheet
• Instruction Sheet
• Photometry & Revit (BIM)
• ARS Troffer .IES
