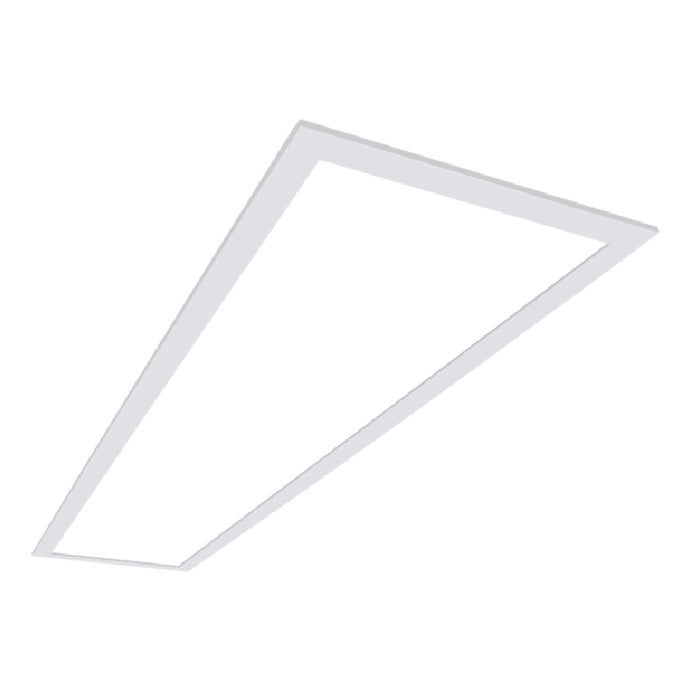

Metalux 14CGTS-L3C3 1x4 LED Backlit Panel, 3CCT & Lumens Selectable

The CGTS Selectable Panel LED series is the contractor go-to selectable back-lit panel providing customers an affordable, low glare panel that fits in shallow plenums with room to spare. Offering both selectable lumens and selectable color the CGTS is flexible for any commercial space.

Features

• Wattage: 22W / 32W / 37W Depends on Lumen Selected

• Voltage: 120-277V
• Color Temperature: 3500K/4000K/5000K Selectable
• Lumen: Low/Medium/High Selectable (3271 - 5147)

• CRI: 80
• Standard UNV 120 - 277V driver with 0-10V dimming, 10% standard
• Frosted smooth lens with over-optic LEDs for uniform, pleasing distribution from corner to corner
• Die-formed steel back plate is post-painted to ensure durability
• Housing is constructed absent of holes
• Aluminum frame weld and ground, for a seamless appearance
• Integral grid clips secure fixture to the ceiling structure
• Junction box constructed of code gauge galvanized steel with access plate

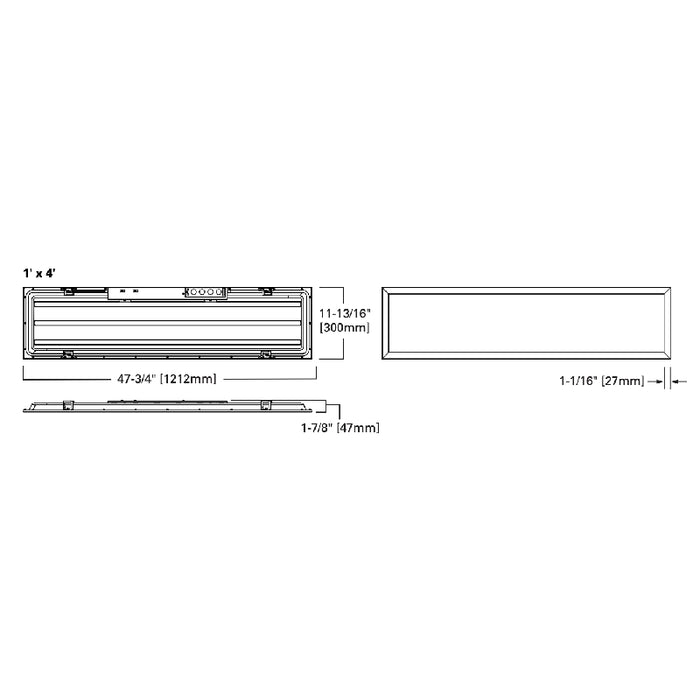

Dimensions

• Length: 47.75"
• Width: 11.81"

• Height: 1.88"
• Weight: 9.18 lbs

Estimated Life

• >L82@60,000 hours

Warranty

• 5-year limited warranty

Documents

• Spec Sheet
• Instruction Sheet
