OVERVIEW
Specially designed for installations prone to vandalism, the VRTL LED recessed troffer is ideal for locker rooms, schools, isolated areas and other applications prone to negligence or abuse.
Features
- Finish: White
- Trim Type: Grid (9/16" - 1 1/2" W x 2" H), Flange
- Wattage/Lumens:
- 21.5W/ 3000 Lumens
- 38.7W / 5000 Lumens
- 58.5W / 7000 Lumens
- 80W / 10000 Lumens
- 121.1W / 12000 Lumens
- Voltage: 120-277V
- Color Temperature: 3000K, 3500K, 4000K, 5000K
- CRI: 80
- Driver: eldoLED 0-10V ECOdrive. Linear dimming to 1% min
- Door Frame: Inset CRS, white
- Diffuser Type: Acrylic frosted lens with 1/8" polycarbonate clear lens

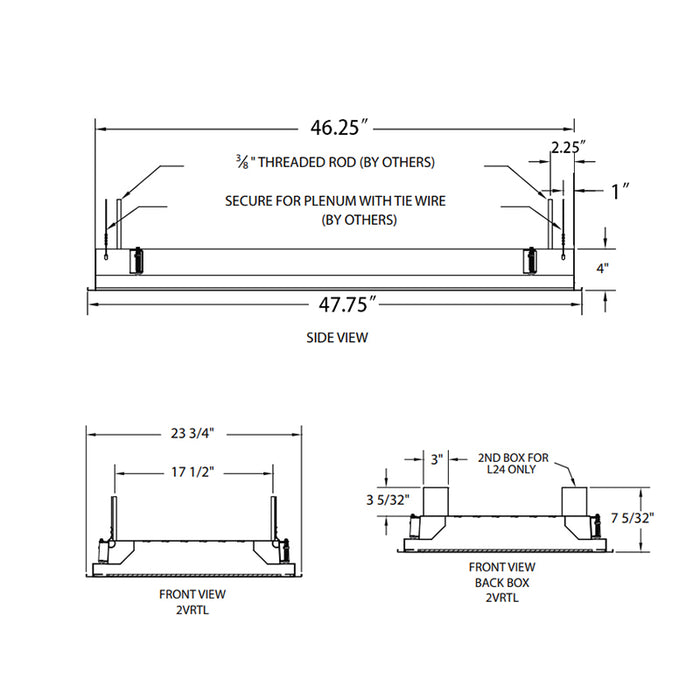

Dimensions
- Length: 48"
- Flange Length: 47.75"
- Housing Length: 46.25"
- Tie Wire: 1"
- Threaded Rod: 2.25"
- Weight: 57 lbs
Estimated Life
-
Lumen maintenance of L80/60,000 hours, L70>100,000 hours
Warranty
- 5-Year Limited Warranty
Document
- Spec Sheet
- Instruction Sheet
- Photometry & Revit (BIM)
- VRTL LED Troffer .IES
- VRTL LED Troffer BIM
