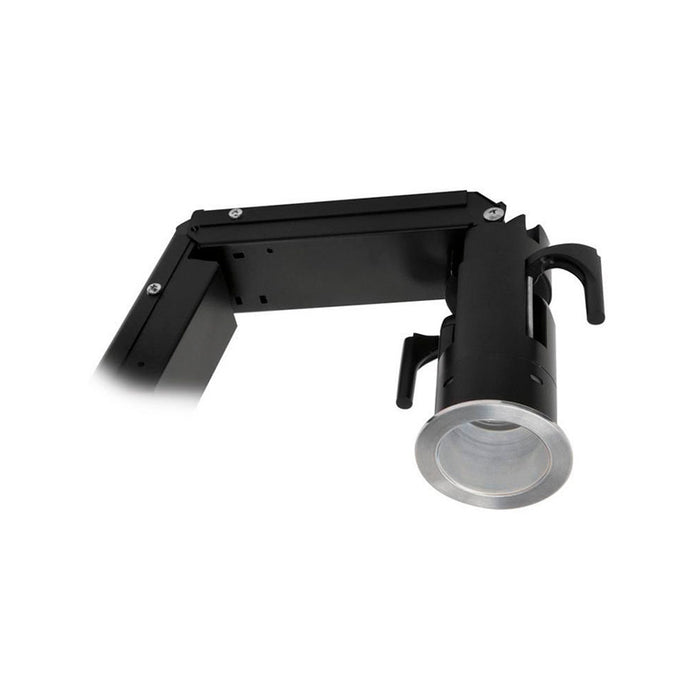

![Lightolier C2L09DL Calculite 1.75" LED Frame Light Engine](http://www.lbclightingpro.com/cdn/shop/files/C2L09DL_700x700.jpg?v=1722238593)
by Lightolier
Lightolier C2L09DL Calculite 1.75" LED Frame Light Engine
SKU C2L09DL930RZ10U
Original price
$0.00
-
Original price
$0.00
Original price
$270.40
$270.40
-
$270.40
Current price
$270.40
Availability:
In stock
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
Add detail and style to any space with Calculite LED 1.75" aperture downlights and optional Micro Vetro elements.
Features
- Complete luminaire = Frame + Trim or Micro Vetro (optional) + Installation Accessories (if required)
- Wattage: 13.9W
- Voltage: 120-277V
- Color Temperature: 3000K
- Lumen: 900
- CRI: 90
- Dimming: 0-10V dimming
- Install from below
- Power connection: Integral connection between driver and LED array
- Field replaceable optics: 4 TIR optics included for field installation and replacement (25°, 30°, 45° and 50° beams included)
Dimensions
- Aperture: 1.75"
- Width: 2.5"
- Ceiling cutout: 2.13"
- Thick ceiling capability: 0.38" - 2"
- Fixture Weight: 1.8 lbs
Estimated Life
- 50,000 hours
Warranty
- 5 Year Limited
