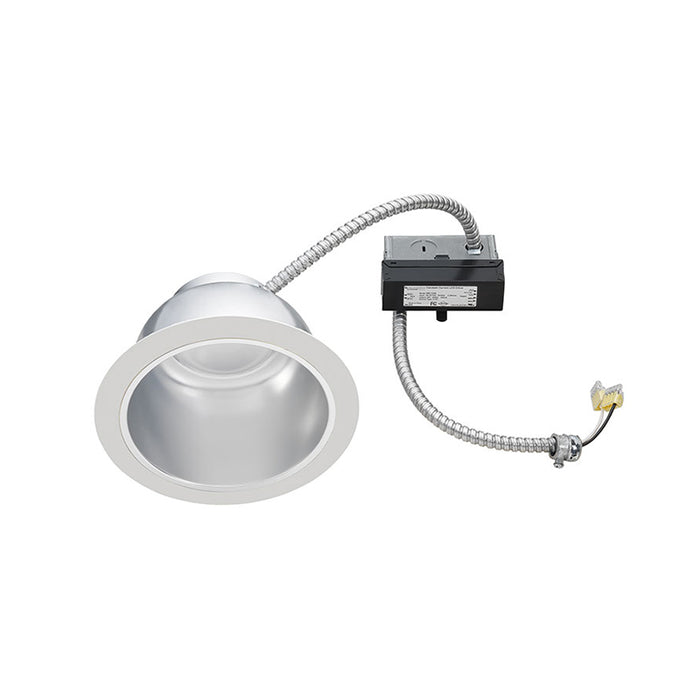

Juno JCLR6 6" Commercial LED Retrofit, 2000 Lumens

Juno Commercial LED Retrofit Trim assemblies are the ideal way to upgrade existing incandescent, CFL and HID commercial housings to high-performance LED.

Features

• Made to order item. Lead time is 3 to 4 weeks.
• Recessed Size: 6"
• Rough-in section inside diameter compatibility range: 6" - 6.5", 6.63" - 7.13"
• Trim Finish: Haze, White Trim Ring
• Wattage: 27.3W
• Voltage: 120-277V
• Color Temperature: 3500K
• Lumen: 2000
• CRI: 90
• Driver: 0-10V Dimmable Driver
• Spun aluminum reflector and separate non-metalic trim ring with shadow free, knife edge design
• All-in-one design where LED light engine is mounted directly to trim
• Quick disconnect in j-box allows for easy wiring of retrofit conduit whip assembly without reflector interference
• Replaceable light engine is mounted directly to aluminum trim providing superior thermal management to ensure long life
• Trim includes conduit whip and connector to attach directly to 1/2" trade size knockout in junction box

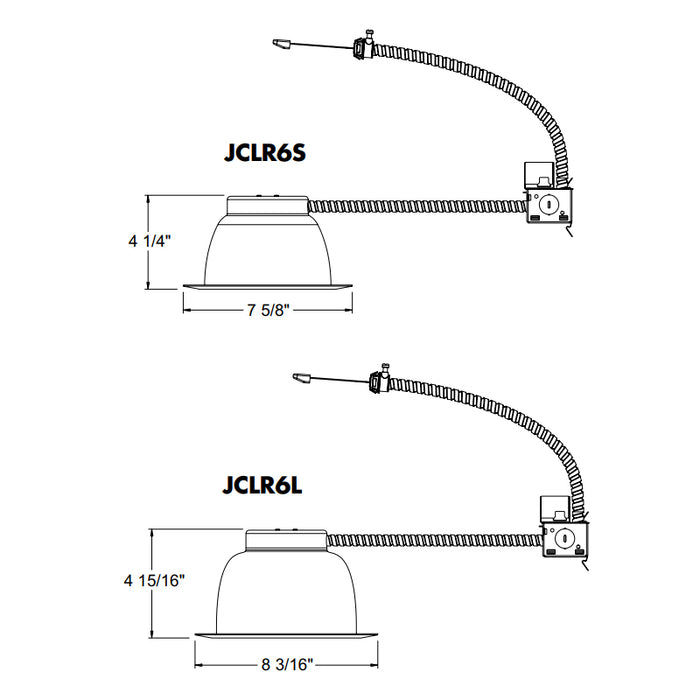

Dimensions

• JCLR6S
  • Width: 7.63"
  • Height: 4.25"

• JCLR6L
  • Width: 8.19"
  • Height: 4.94"

Estimated Life

• Rated for 50,000 hours at 70% lumen maintenance


Warranty

• 5 Year Limited

Documents

• Spec Sheet
• Instruction Sheet
