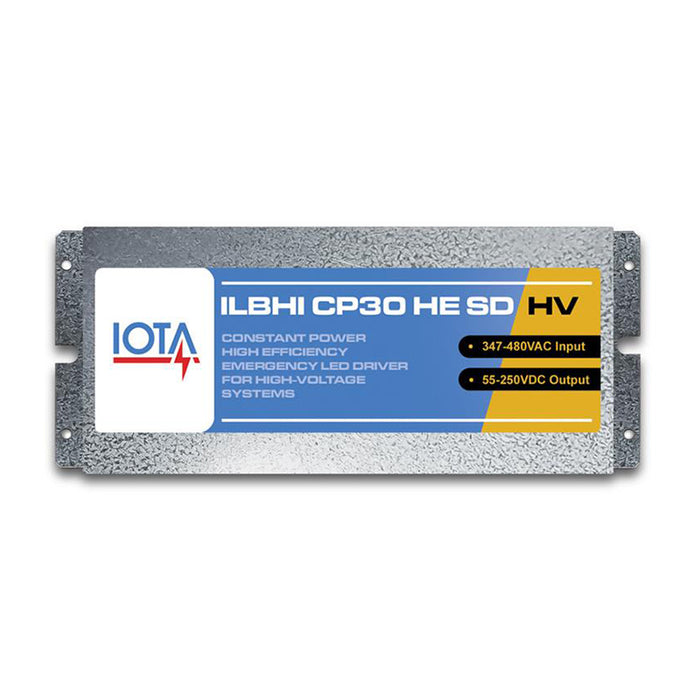

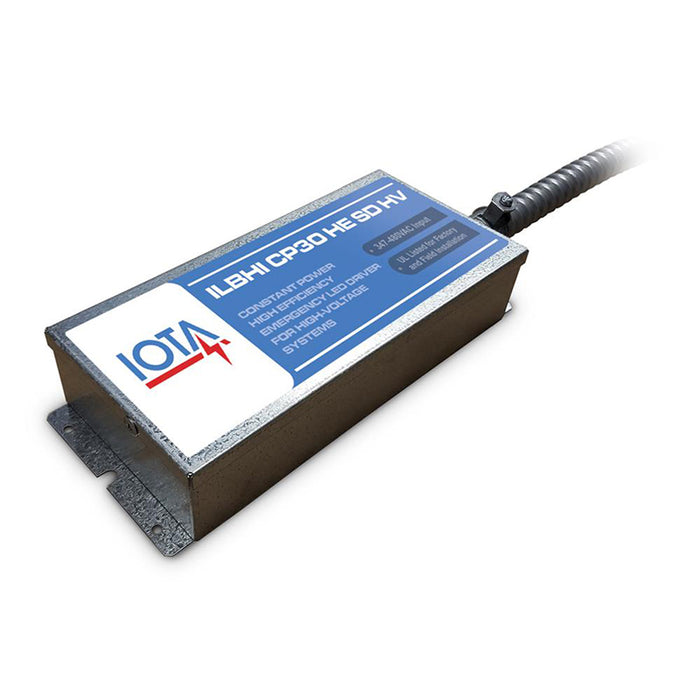

IOTA ILBHI CP30 HE SD HV 30W Constant Power High Voltage Emergency LED Driver

SKU ILBHI CP30 HE SD HV S
Original price $0.00 - Original price $0.00
Original price
$457.95
$457.95 - $457.95
Current price $457.95
Availability:
In stock

Estimated Shipping Widget will be displayed here!

OVERVIEW

The IOTA ILBHI CP20 HE SD HV is a UL Listed emergency LED driver for field and factory installation that allows a 347-480VAC fixture with 55-200VDC Non-Class 2 LED lighting loads to be used for both normal and emergency operation.

Features

  • Mounting: Single Flex
  • Input Voltage: 347-480V
  • Output Wattage: 30W
  • Output Voltage: 55-250VDC
  • Lumen Performance: 3000 to 3900
  • Auto-Sensing Non-Class 2 Output
  • Self-Diagnostic / Self-Testing
  • Integral and flexible conduit models for wiring to the fixture
  • AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
  • Durable, galvanized steel enclosure
  • For use with switched or unswitched fixtures

Dimensions

  • Length: 10.29"
  • Width: 4.45"
  • Height: 2.04"
  • Weight: 5 lbs

Warranty

  • 5-Year Warranty

    Document
