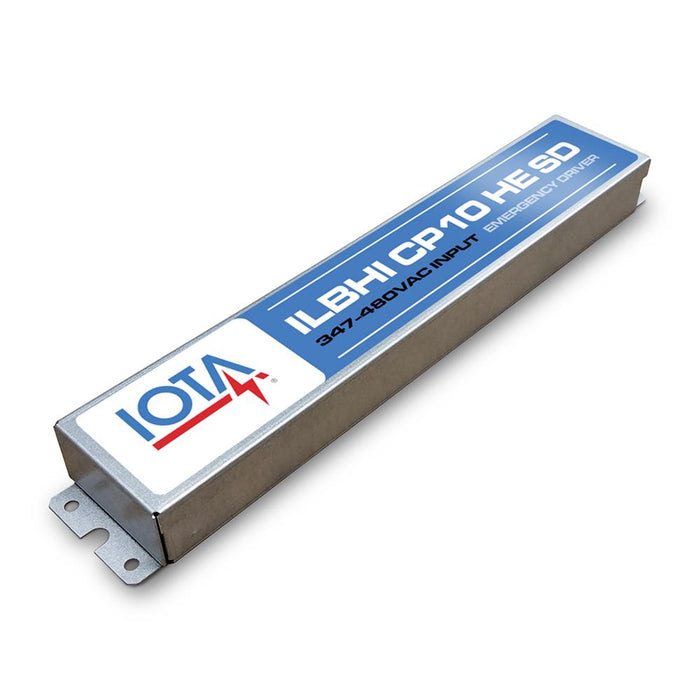

IOTA ILBHI CP10 HE SD 10W Constant Power High Voltage Emergency LED Driver
SKU ILBHI CP10 HE SD B
Original price
$0.00
-
Original price
$0.00
Original price
$244.95
$244.95
-
$244.95
Current price
$244.95
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The ILBHI CP10 is a 10-Watt Emergency LED Driver for 347-480 VAC Luminaires for Class 2 LED Loads. Features Constant Power output for non-diminishing emergency illumination for the full runtime.
Features
- Mounting: No Flex
- Input Voltage: 347-480V
- Output Wattage: 10W
- Output Voltage: 15-55VDC
- Lumen Performance: 1000 to 1300
- Auto-Sensing Class 2 Output
- Self-Diagnostic / Self-Testing
- AC-Activate circuity simplifies wiring by eliminating the need for manual battery connection during installation
- Durable, galvanized steel enclosure
- For use with switched or unswitched fixtures

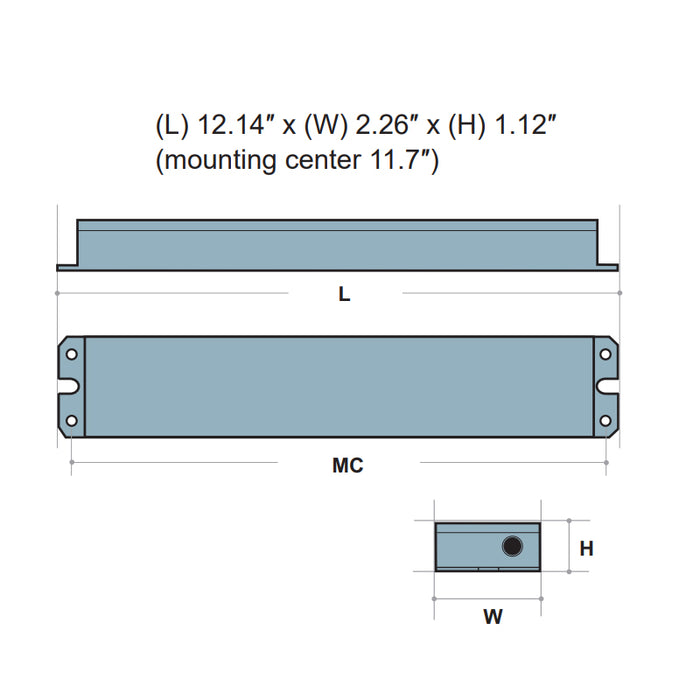

Dimensions
- Length: 12.14"
- Width: 2.26"
- Height: 1.12"
- Weight: 1.65 lbs
Warranty
- 5-Year Warranty
