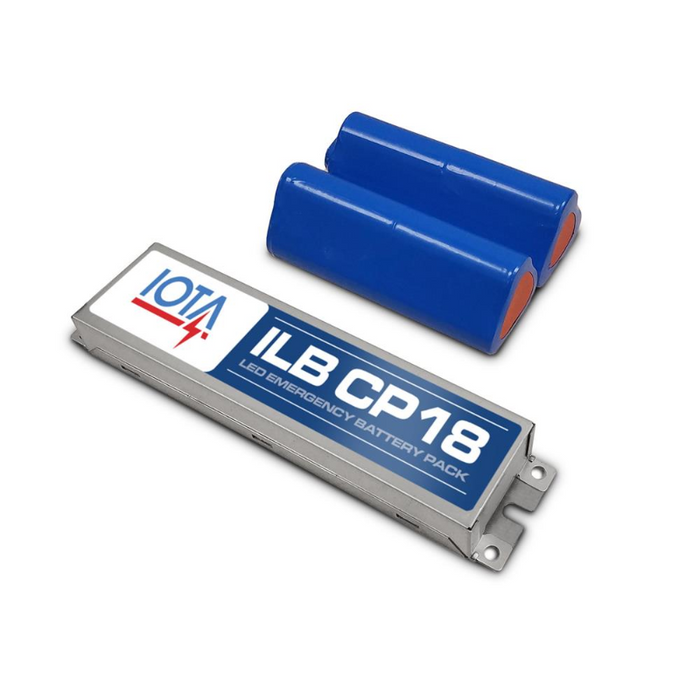

IOTA ILB CP18 HE CW LP64 18W Constant Power Emergency LED Driver

The IOTA ILB CP18 HE CW LP64 allows the same LED fixture to be used for both normal and emergency operation. In the event of a power failure, the ILB CP18 HE CW LP64 switches power from the normal LED driver to operate the LEDs in the emergency mode for 90 minutes.

Made to order item. Requires 6 to 8 weeks lead time.

Features

• Construction: Galvanized Steel Housing
• Wattage: 18W

• Voltage: 120-277V
• Lumen: 1800-2340
• Battery: LiFePO4, 24 Hour Recharge
• Reduced weight, maintenance-free, high temperature LiFePO4 lithium battery designed for long life
• Emergency Operation: 90 minutes

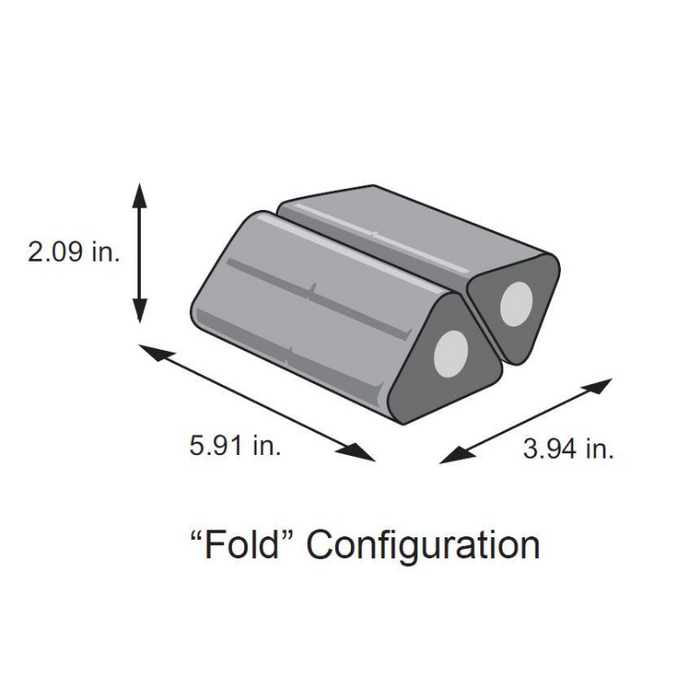

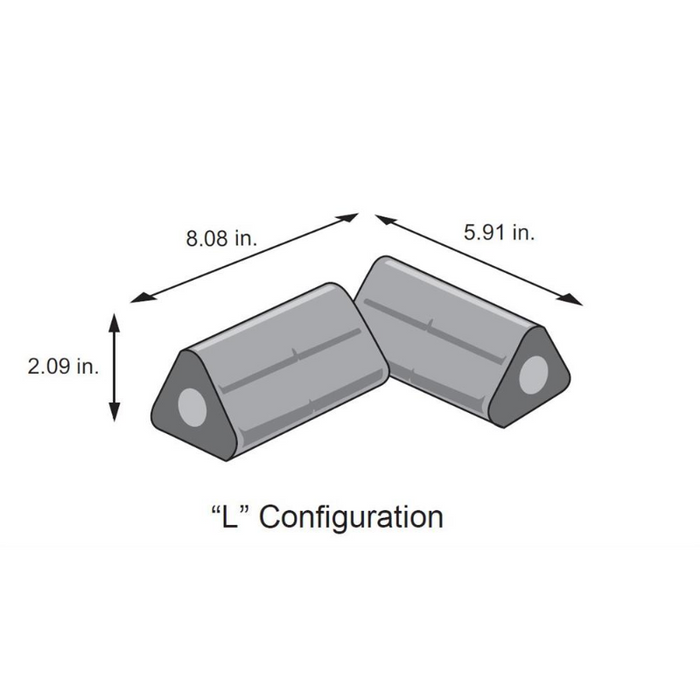

• Two-part lithium battery component can be adjusted to accommodate fixture compartment spaces as needed
• For use with switched or unswitched fixtures
• Includes single-piece IP67 rated test switch and charge indicator accessory kit

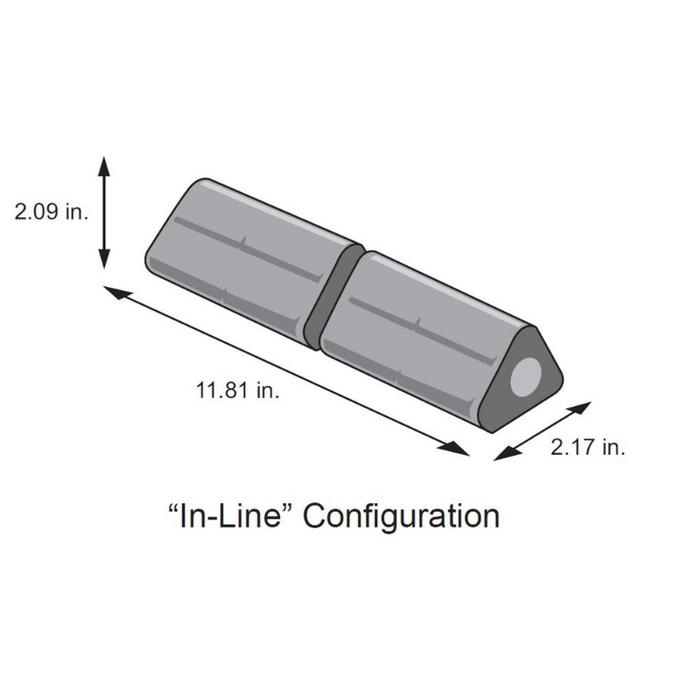

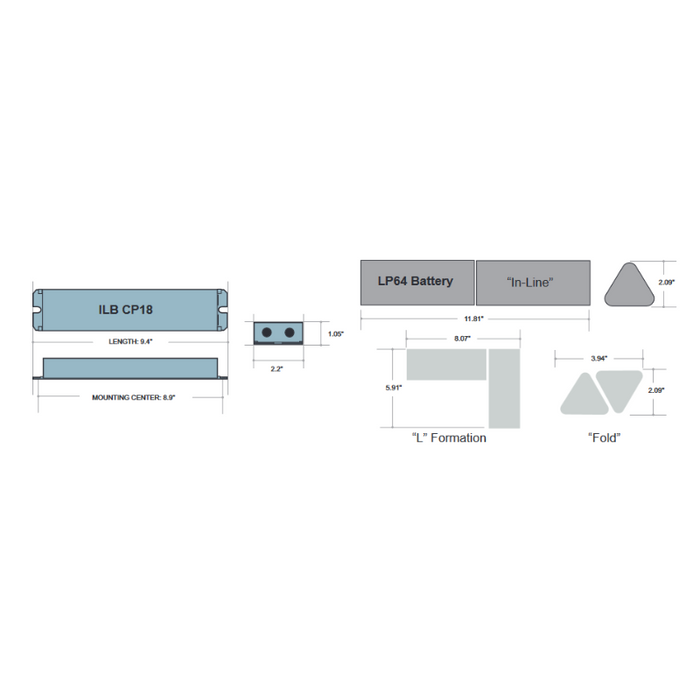

Dimensions

• Length: 11.81"

• Width: 2.17"

• Height: 2.09"

• Weight: 3.44 lbs

Warranty

• 3-Year Warranty

Document

• Spec Sheet
• Instruction Sheet
