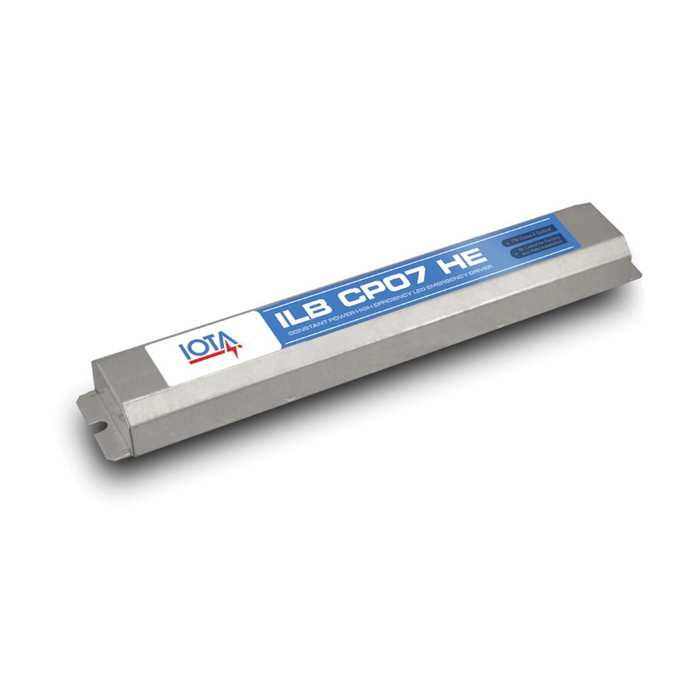

IOTA ILB CP07 HE 7W Constant Power Emergency LED Driver

The ILB CP07 HE from IOTA is a UL Listed LED emergency driver for field or factory installation that allows the same LED fixture to be used for both normal and emergency operation.

Features

• Construction: Galvanized Steel Case

• Wattage: 7W

• Voltage: 120-277V
• Lumen: 700-910
• Mounting Style: Dual Flex, Integral Non-Flex, Dual Flex with Reflector Mount TBTS
• Battery: High Temp Nickel-Cadmium, 24 Hour Recharge
• Long life high temperature recyclable Ni-Cad battery
• Emergency Operation: 90 minutes

• Includes single-piece TBTS test switch and charge indicator accessory kit
• For use with switched or unswitched fixtures

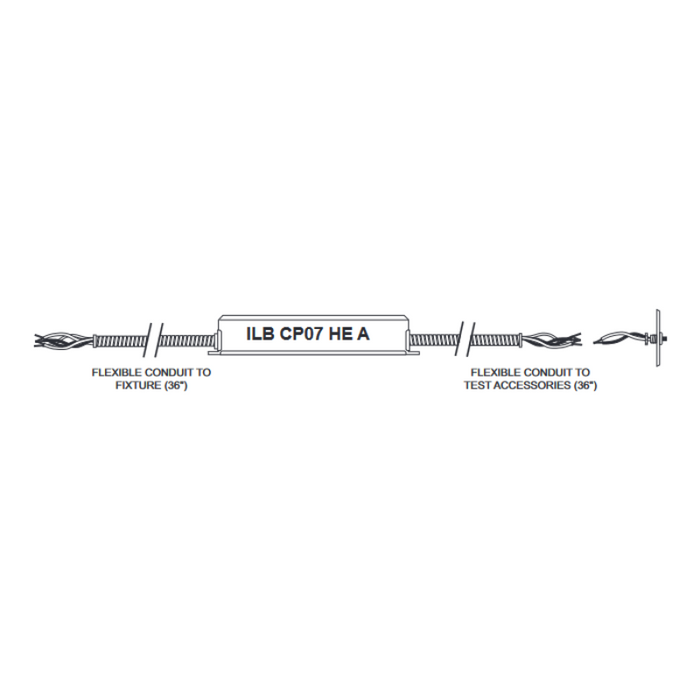

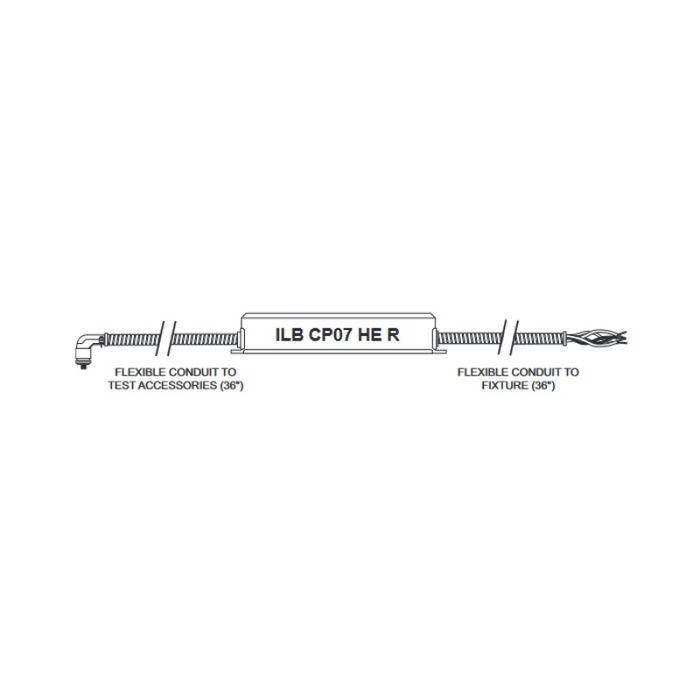

• Four mounting configurations available

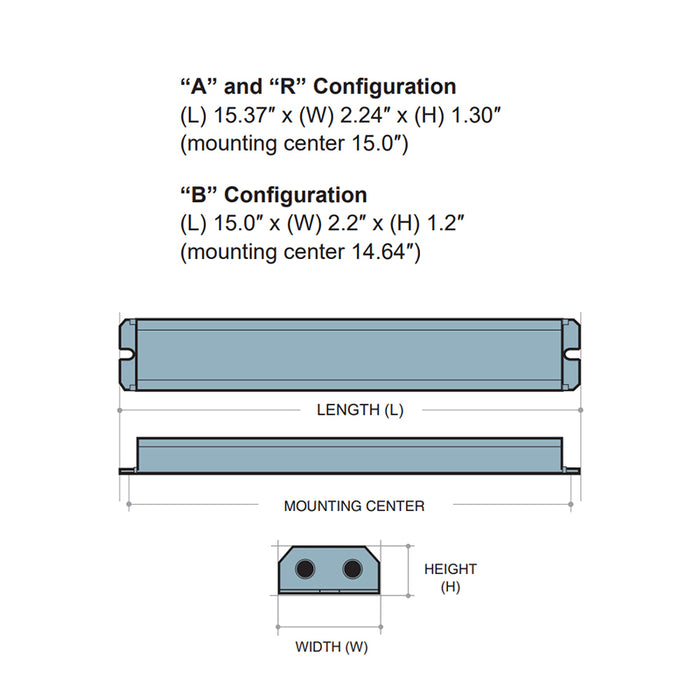

Dimensions

• Length: 15.37"

• Width: 2.24"

• Height: 1.3"
• Weight: 4 lbs

Warranty

• 5-Year Warranty

Document

• Spec Sheet
• Instruction Sheet - Dual Flex
• Instruction Sheet - Integral Non-Flex
• Instruction Sheet - Dual Flex w/ Reflector Mount TBTS
