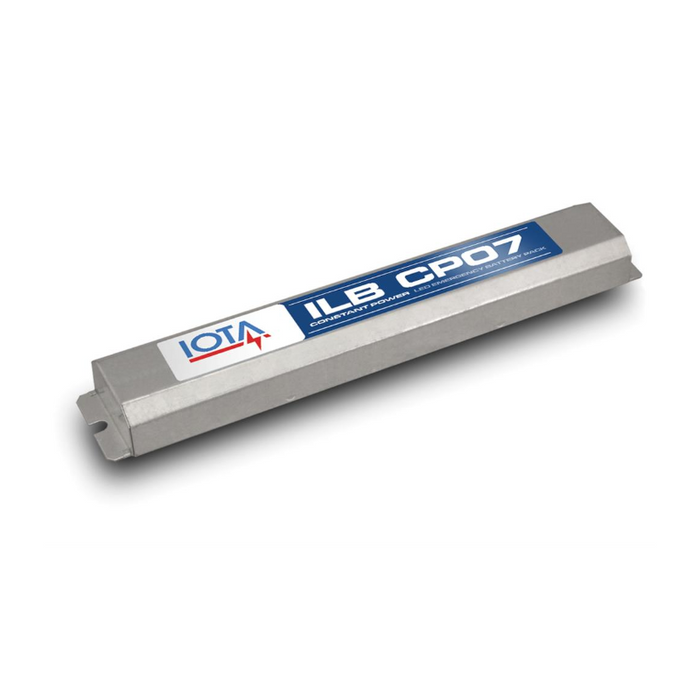

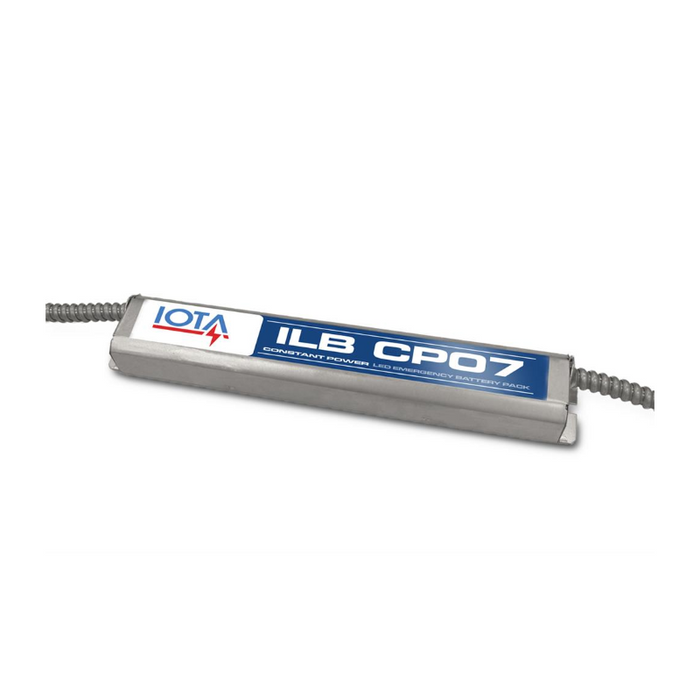

IOTA ILB CP07 7W Constant Power Emergency LED Driver

The IOTA ILB CP07 is a UL Listed LED emergency driver that allows the same LED fixture to be used for both normal and emergency operation.

Features

• Construction: Galvanized Steel Case

• Wattage: 7W

• Voltage: 120-277V
• Lumen: 700-910

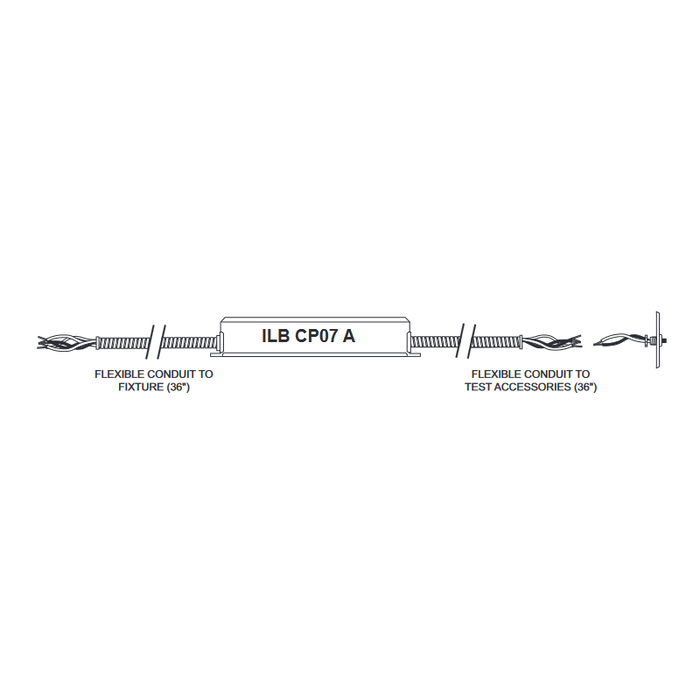

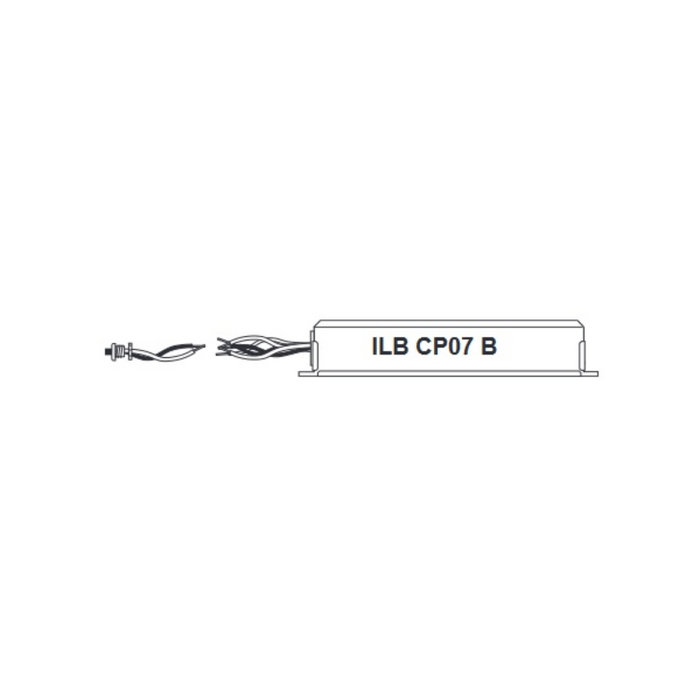

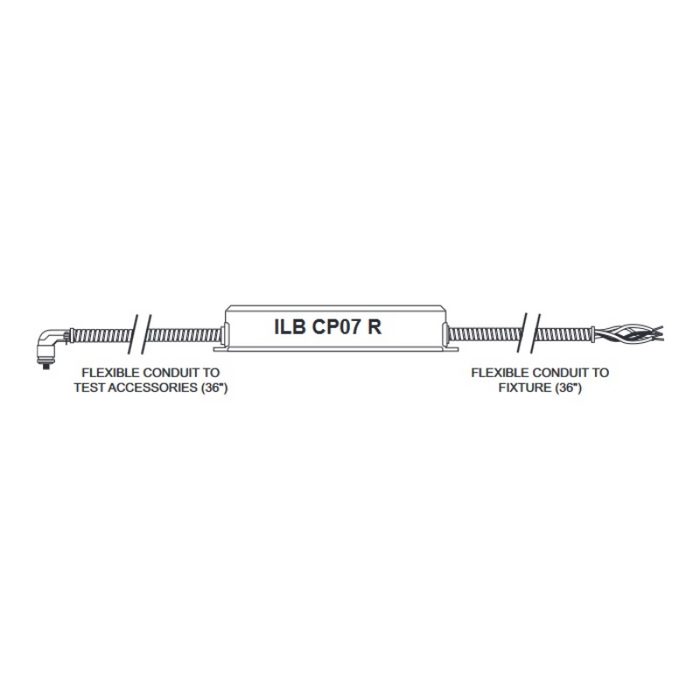

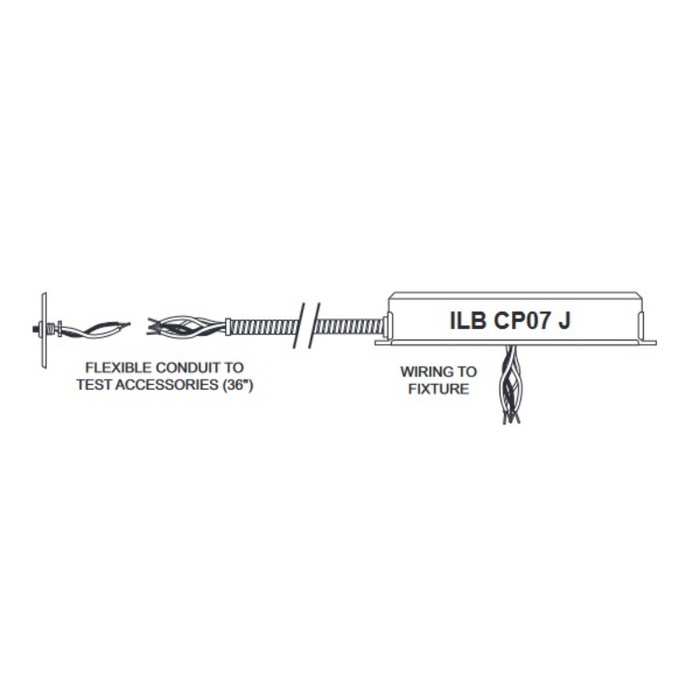

• Mounting Style: Dual Flex, Integral Non-Flex, Single Flex Junction Mount, Dual Flex with Reflector Mount TBTS

• Battery: High Temp Nickel-Cadmium, 24 Hour Recharge
• Long life high temperature recyclable Ni-Cad battery
• Emergency Operation: 90 minutes
• Single-piece TBTS test switch/charge indicator can be remote mounted up to 50 feet
• For use with switched or unswitched fixtures
• Five mounting configurations available

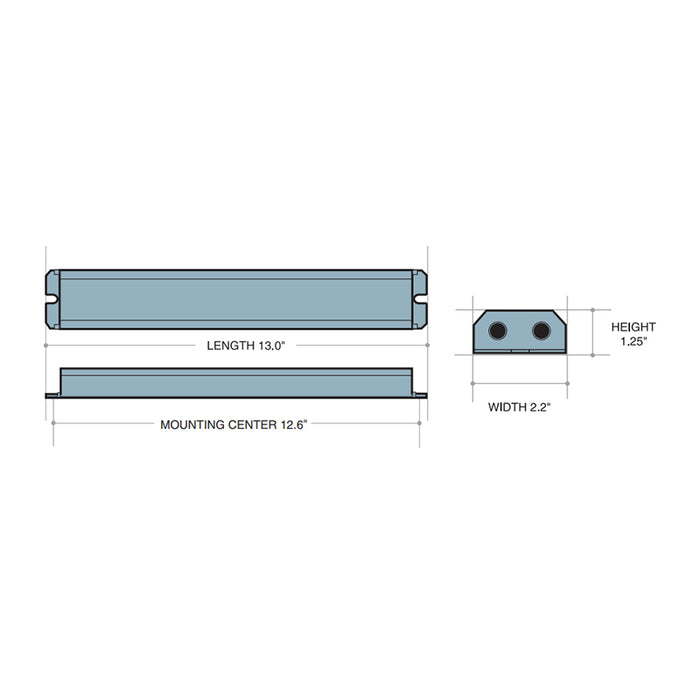

Dimensions

• Length: 13"

• Width: 2.2"

• Height: 1.25"

• Weight: 3 lbs

Warranty

• 5-Year Warranty

Document

• Spec Sheet
• Instruction Sheet
