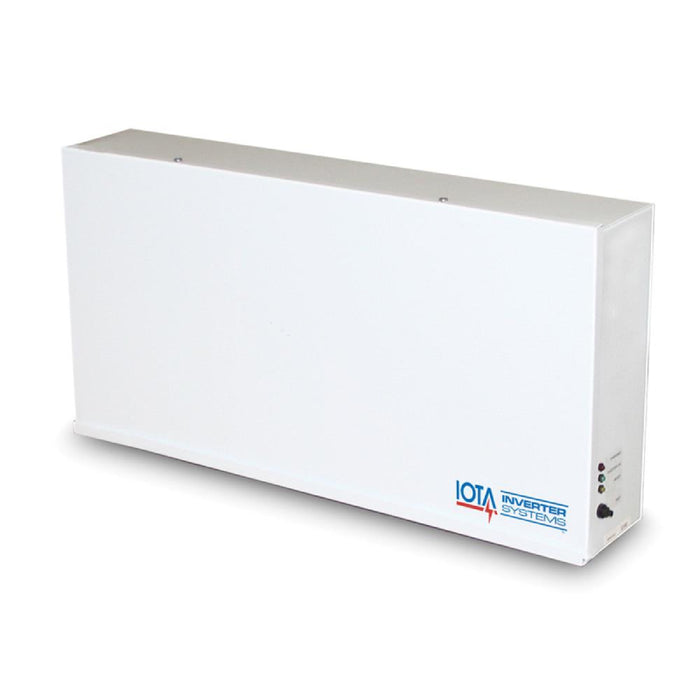

IOTA IIS 125 HE SM 125W Surface Mount Inverter for CA Title 20 Applications
SKU IIS 125 HE SM
Original price
$0.00
-
Original price
$0.00
Original price
$866.25
$866.25
-
$866.25
Current price
$866.25
Availability:
In stock
Estimated Shipping Widget will be displayed here!
OVERVIEW
The IOTA IIS 125 HE SM is a UL Listed stand-alone modified sine wave output inverter designed to provide power to designated emergency lighting fixtures. In a power loss situation, the IOTA IIS 125 HE SM will supply 125W of power from the onboard battery supply.
Features
-
Input Voltage: 120/277V
- Output Power: 125W
- Output Voltage: 120/277V
- Lamps Operated: LED, Fluorescent, Incandescent
- Transfer Time: < 1 second
- Emergency Operation: 90 mins
- Emergency lighting supplied from a single source
- Operates incandescent, LED, and fluorescent fixtures including fixtures with dimmable fluorescent ballasts
- Surface-mount design
- Includes momentary contact test switch, yellow ready indicator, green inverter-on indicator, and red charging indicator
- Replaceable output fuse protection
- High efficiency modified sine wave inverter
- Variable-rate charger
- Valve Regulated Lead Acid (VRLA) battery provides long life and is maintenance free
- Line voltage allows for remote mounting of emergency fixtures at distances up to 1000 feet
- Low Battery Voltage Disconnect and Line Latch Protection
- For use with switched or unswitched fixtures

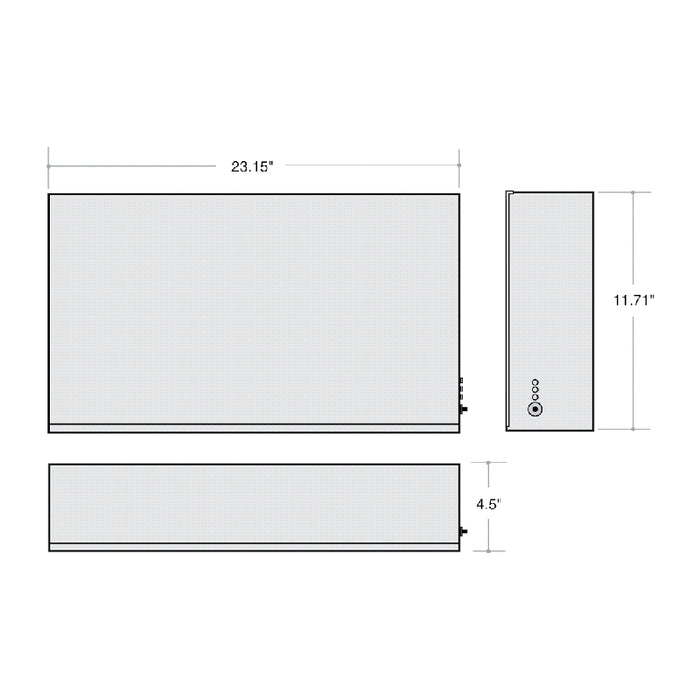

Dimensions
- Length: 23.15"
- Width: 11.71"
- Height: 4.5"
- Weight: 45 lbs
