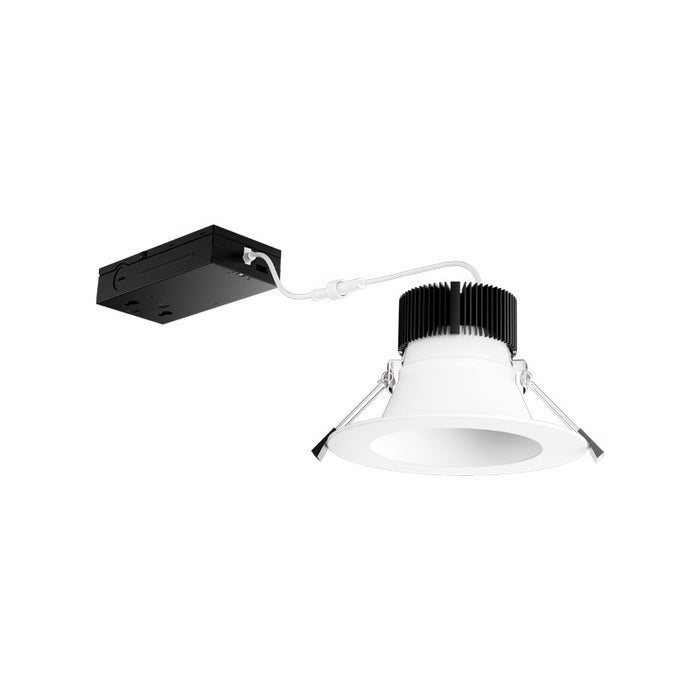

Elco ERT685 6" LED High Lumen Round Reflector Insert, CCT & Lumen Selectable

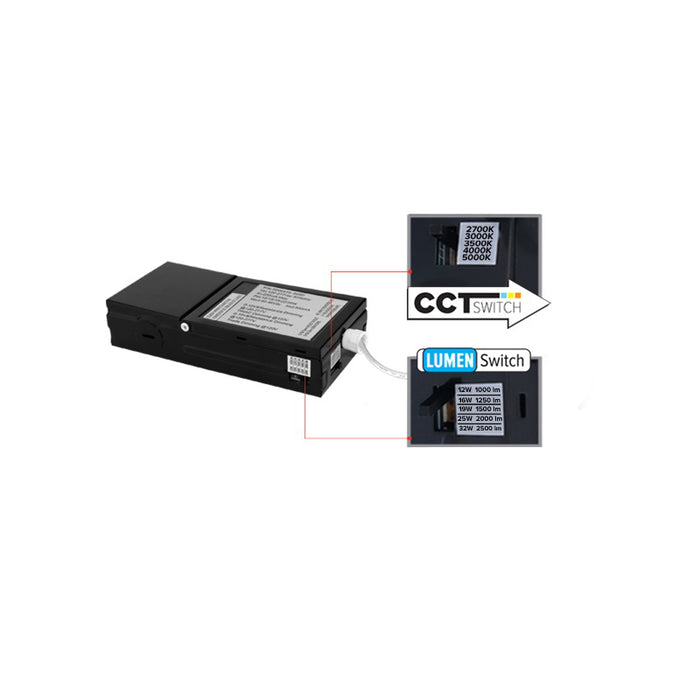

Our 6" LED Recessed Downlights are designed for quick and easy installation without a housing for both new construction and remodel applications, gives you the options you are looking for in one fixture. The CCT manual switch allows you to choose between 2700K, 3000K, 3500K, 4000K or 5000K. The Lumen Switch allows you to choose between 1000 (12W), 1250 (16W), 1500 (19W), 2000 (25W) or 2500 (32W) lm. IC-Rated for use with direct contact with insulation.

Features

• Recessed Size: 6"
• Finish: White, Haze, Haze with White Trim
• Construction: Polycarbonate Lens, Aluminum Remote Box
• Wattage/Lumen: 12W / 16W / 19W / 25W / 32W Selectable
• Voltage: 120/277V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumens: 1000 / 1250 / 1500 / 2000 / 2500 Selectable
• CRI: 90+
• Dimming: 0-10V (On 120/277V), Triac/ELV (Only on 120V)
• Dims down to 10%
• IC Airtight for use with direct contact to insulation
• Plenum rated cable connector to connect from module to remote driver box
• Designed for super shallow ceiling plenums without any housing
• Suitable installation for t-grid and drop ceiling applications
• Remodel applications require no additional accessories
• New Construction application requires mounting plate or frame
• Maximum hole size should not exceed 6.25" for this product
• Includes driver and Jbox

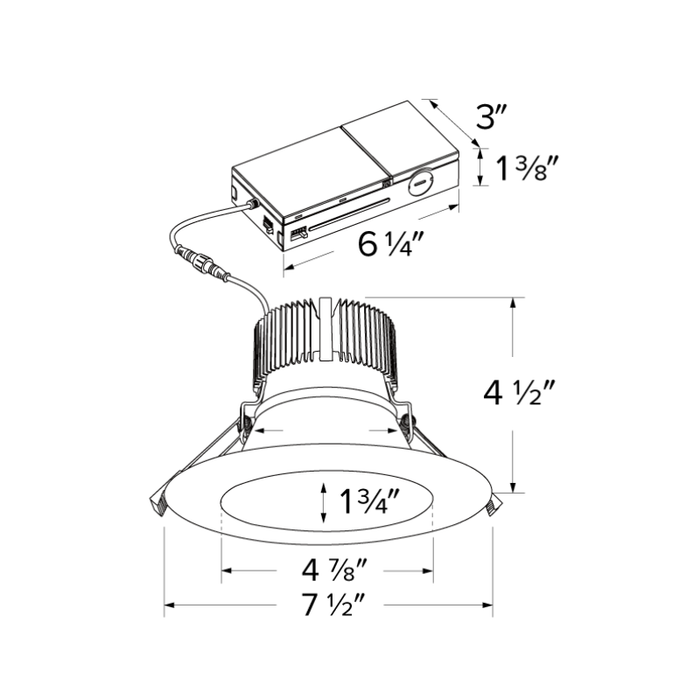

Dimensions

• Width: 7.5"

• Height: 4.5"

Warranty

• 5-year limited warranty.

Documents

• Spec Sheet
