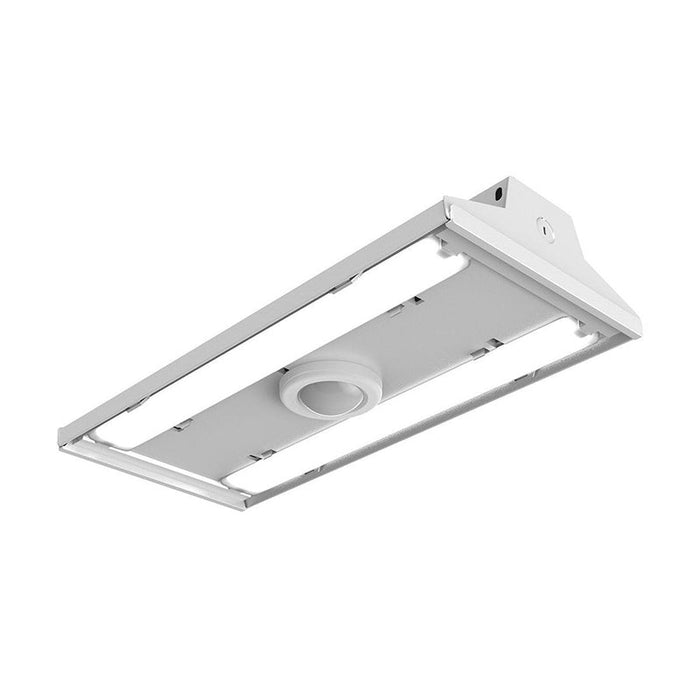

Columbia PELA-840-L30 227W LED Linear High Bay, 4000K, 80 CRI, 30000 Lumens, 120-277V, 0-10V Dimming, Wireless Sensor

The PELA is a compact high bay fixture with many options available from high lumen packages to switchable lumens as well as NX Controls.

Features

• Finish: White
• Mounting: Standard
• Wattage: 227W

• Voltage: 120-277V
• Color Temperature: 4000K
• Lumens: 30000
• CRI: 80
• 0-10V Dimming
• Distribution: Diffused Lens (120º)
• Controls: NX Networked Wireless Enabled Integral NXSMP2-HMO PIR Occupancy Sensor with Automatic Dimming Photocell and Bluetooth Programming
• Ideal for warehouses and industrial buildings. Small size and light weight makes for an easy installation
• Designed for unconditioned spaces through a 50ºC ambient temperature rating and a -30ºC rating for refrigerated spaces

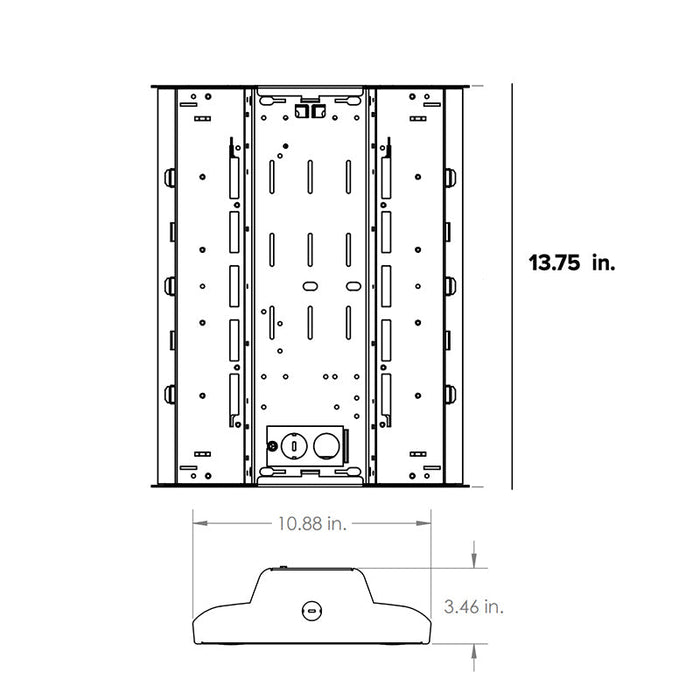

Dimension

• Length: 13.75"
• Width: 10.88"
• Height: 3.46"
• Weight: 10 lbs

Warranty

• 5 year warranty

Document

• Spec Sheet
• Instruction Sheet
• IES Files
