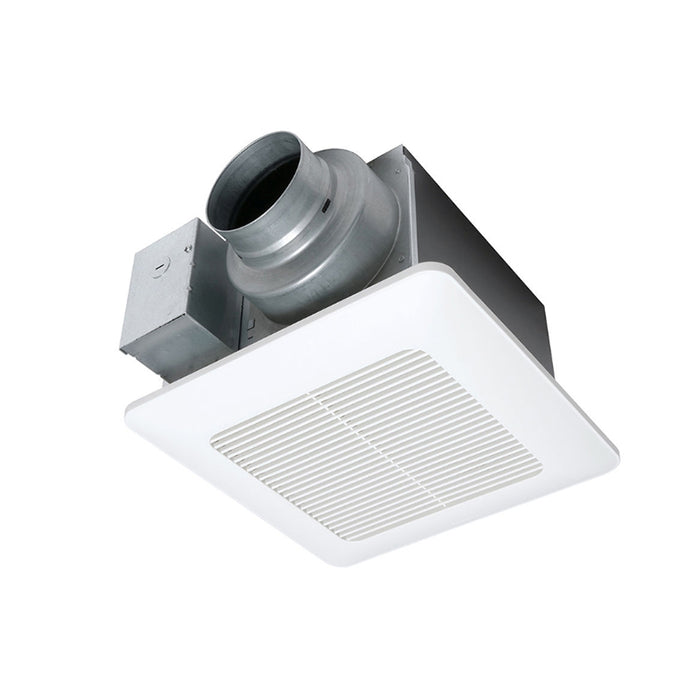

Panasonic FV-0511VQ1 WhisperCeiling Fan DC SmartFlow, 50-80-110 CFM

WhisperCeiling® DC™ Precision Spot Ventilation Fan with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features a ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

Features

• CFM: 50-80-110
• Duct Diameter: 4" or 6"

• Grille Size (in sq.): 13"
• Mounting Opening (in sq.): 10-1/2"

• Sones: <0.3 / 0.5 / 0.7
• Blower Wheel Type: Sirocco
• Motor Type: DC
• Power Rating:  120V/60Hz
• Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
• Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 CFM models)
• Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
• Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
• Elegant grille design compliments the aesthetics of any bathroom

Documents

• Spec Sheet
• Instruction Sheet
