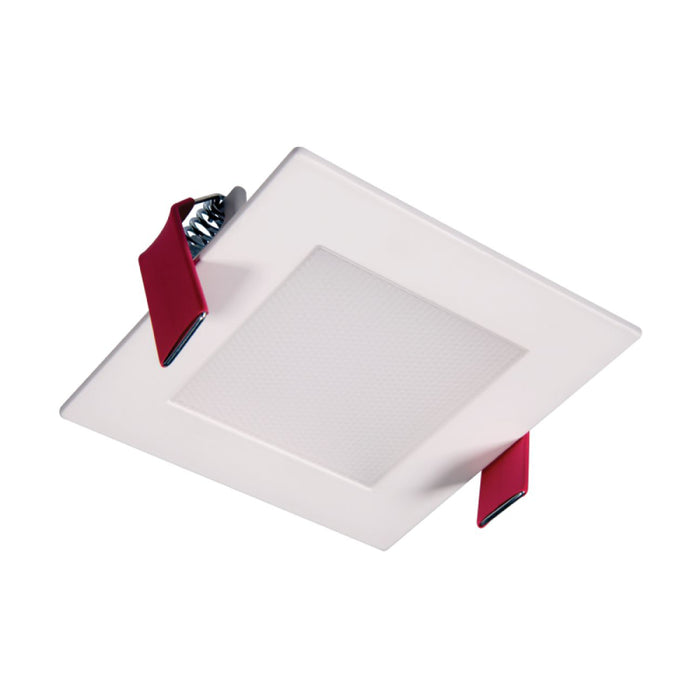

Halo HLB3S 3" LED Square Lens Downlight with Remote Driver / Junction Box, CCT Selectable

HLB3S 3" Slim Canless Direct Mount

Features

• Title 24 compliant, can be shipped to California locations
• Recessed Size: 3"
• Finish: Matte White Flange
• Wattage: 9W

• Voltage: 120V
• Color Temperature: 2700K / 3000K / 3500K / 4000K / 5000K Selectable
• Lumens: 500
• CRI: 90
• Driver: 120V 60Hz, LE & TE phase cut 5% dimming
• Ultra-thin square lens downlight with remote driver/junction box
• Canless install into drywall/suspended ceilings (no J-box or housing required)
• Install from below the ceiling in as little as a 1-1/2" plenum height
• For Insulated Ceiling (IC) rated and Non-IC rated applications

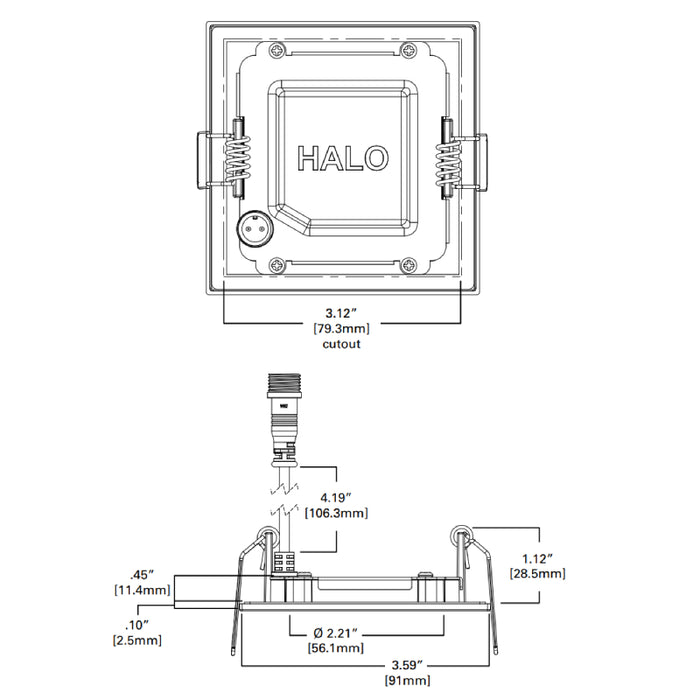

Dimensions

• Width: 3.12"
• Height: 1.12"

Estimated Life

• Achieves L70 at 50,000 hours in IC and non-IC applications

Warranty

• 5-year limited warranty.

Documents

• Spec Sheet
• Instruction Sheet
