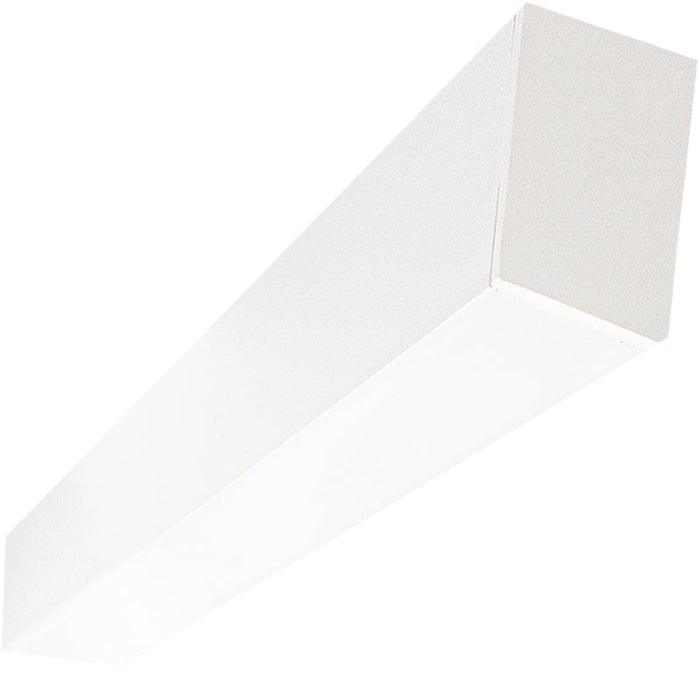

Westgate SCX2 3FT 30W LED Linkable Linear Light, CCT

Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.

Features

• Wattage: 30W
• Voltage: 120-277 VAC
• CCT Selectable: 3000K/3500K/4000K/5000K (Selectable switch inside fixture)
• Color Temperature/Lumens:
• 3000K/2907 lm
• 3500K/3114 lm
• 4000K/3041 lm
• 5000K/3133 lm
• CRI: ≥80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Dimming: 0~10V Dimmable
• Lens Type: Opal Polycarbonate Lens
• Low profile design
• Aluminum housing with matte white finish
• Lens Snaps into Housing

• Mounting Options: Surface, Suspended, Wall, Recessed
• Adjustable Suspension Brackets Provided on Top of The Fixtures

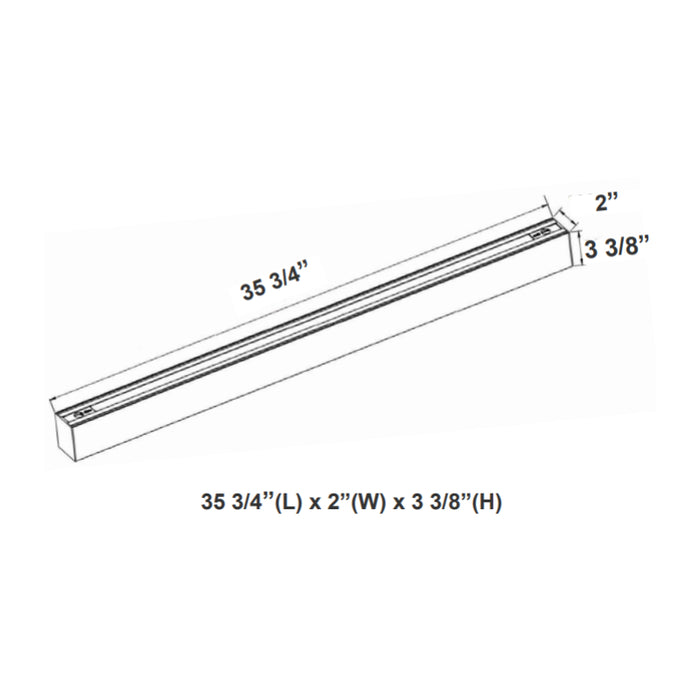

Dimensions

• Length: 35-3/4"

• Width: 2"
• Height: 3-3/8"

Documents

• Spec Sheet
• Instruction Sheet
