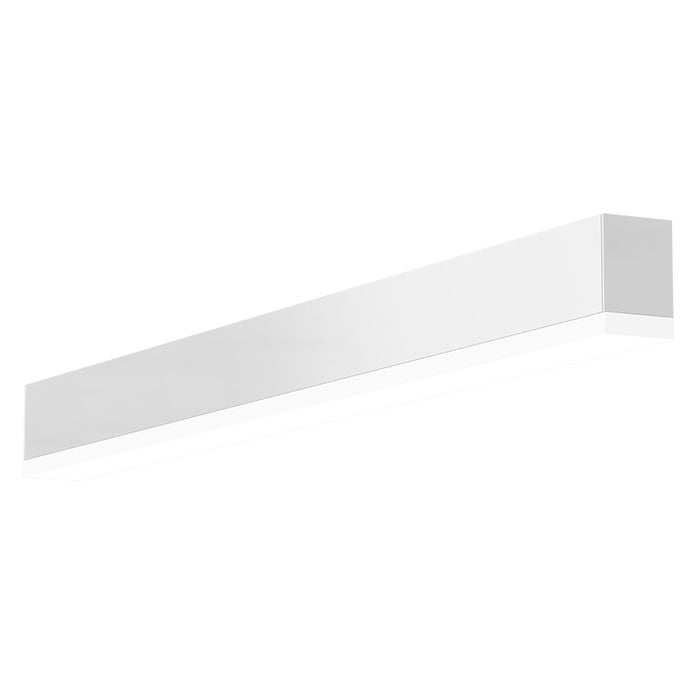

Westgate SCX 2FT 20W LED Linkable Linear Light, CCT, Pmma Lens

Linear Lighting can customize your desired length, look, and color temperature to either be suspended, surface mounted, or recessed to suit your needs. Ideal for Storage rooms, Offices Conference rooms, Retail Reception areas, Hallways Education facilities, hotels, and restaurants.

Features

• Wattage: 20W
• Voltage: 120-277 VAC
• CCT Selectable: 3000K/3500K/4000K/5000K (Selectable switch inside fixture)
• Color Temperature/Lumens:
• 3000K/2197 lm
• 3500K/2316 lm
• 4000K/2348 lm
• 5000K/2390 lm
• CRI: ≥80
• Beam Angle: 104.8°(H) x 100.5°(V)
• Dimming: 0~10V Dimmable
• Lens Type: Pmma Lens
• Aluminum housing with matte white finish
• Custom Colors Available
• Lens Snaps into Housing

• Mounting Options: Surface, Suspended, Wall, Recessed
• Adjustable Suspension Brackets Provided on Top of The Fixtures

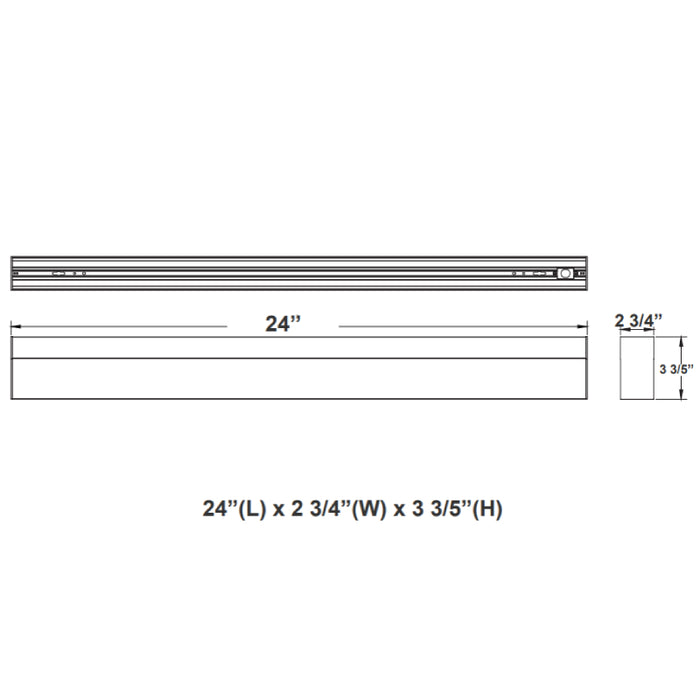

Dimensions

• Length: 24"

• Width: 2-3/4"
• Height: 3-3/5"

Documents

• Spec Sheet
• Instruction Sheet
