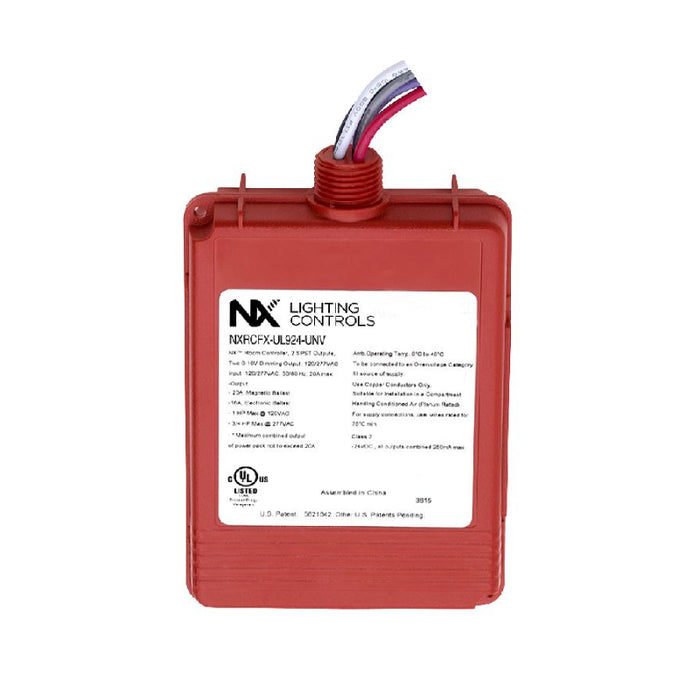

NX Lighting Controls NXRCFX-UL924-UNV UL924 Load Controller
SKU NXRCFX-UL924-UNV
Original price
$0.00
-
Original price
$0.00
Original price
$227.78
$227.78
-
$227.78
Current price
$227.78
Availability:
in stock, ready to be shipped
Estimated Shipping Widget will be displayed here! (with custom color)
OVERVIEW
The NXRC-UL924-UNV Load Controller is specifically designed to control the emergency lighting in a single zone or room that is using room controllers as the primary lighting control.
Features
- Standby Power: 1.2W/12.5W
- Input: 120/277/347VAC
- Dimming: 0-10V Dimming
- Single relay version with dual 0-10V interface for full range dimming control
- Automatically overrides lighting to emergency state upon loss of normal power
- Utilizes CAT5 connection to standard NX room controller for normal power sensing
- Full range continuous dimming defaults to full ON in emergency mode
- FX bus enabled and compatible with NXRCFX room controllers
- Provision for remote test button or fire alarm interface
- Advanced configuration, power metering, and control through either NX Area Controller or NX Lighting Controls mobile app
Dimensions
- Length: 5.75"
- Width: 3.85"
- Height: 1.3"
Warranty
- 5 Years Limited Warranty
