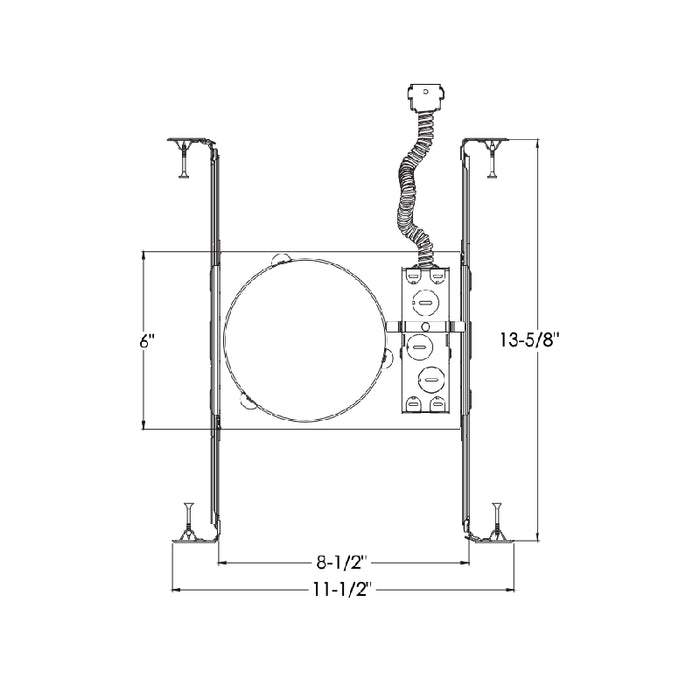

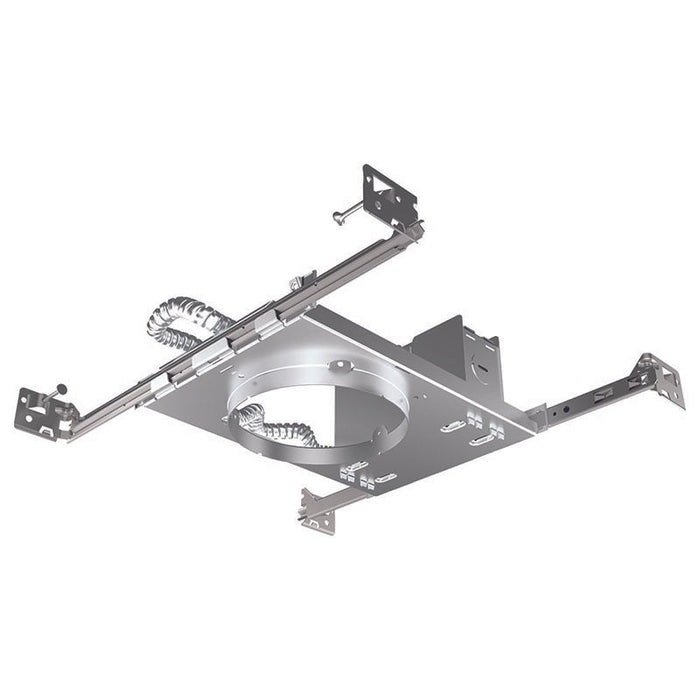

Juno Podz 5" New Construction Mounting Frame

Features

• Trim sold separately
• Voltage: 120V
• Dimming: Forward/Reverse Phase Cut, 5% dim
• 22-gauge die-formed galvanized steel mounting frame
• Rough-in section fully assembled for ease of installation
• Pre-installed Air Loc gasket applied to frame
• Conduit cable with quick connect electrical plug pre-wired on junction box and allows for easy electrical connection with the trim module
• Junction box provided with (5) 1/2" and (1) 3/4" knockouts, (4) knockouts for 12/2 or 12/3 NM cable and ground wire

Documents

• Spec Sheet
• Installation
