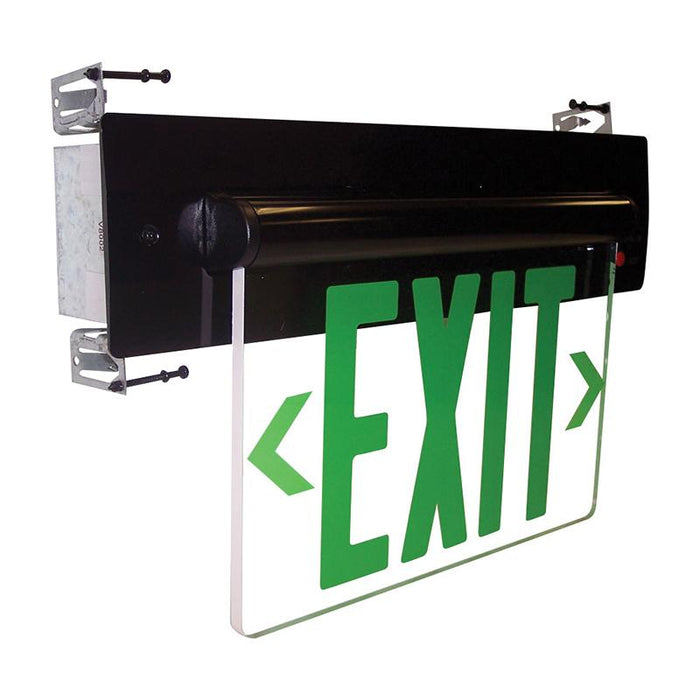

Nora NX-815-LEDG Recessed Adjustable LED Edge-Lit Exit Sign, Battery Backup - Single Face, Green Letters

Ideal for architectural applications where aesthetic and minimal profile appearance is desired. LED sources within the adjustable housing cast a brilliant red or green illumination on letters embedded inside the acrylic face.

Features

• Housing Color: Aluminum, White, Black
• Letter Color: Green
• Number of Faces: Single
• Face Type: Clear Acrylic
• Operation: Battery Backup
• Wattage: 3W normal / 5W emergency operation
• Voltage: 120/277V
• Replaceable Ni-Cad battery provides 90 minutes of illumination during emergency operation
• Galvanized steel housing with die-cast cover plate and acrylic panel
• 6" Letters
• Mounting: Recessed, 24-1/2″ Bar Hangers included

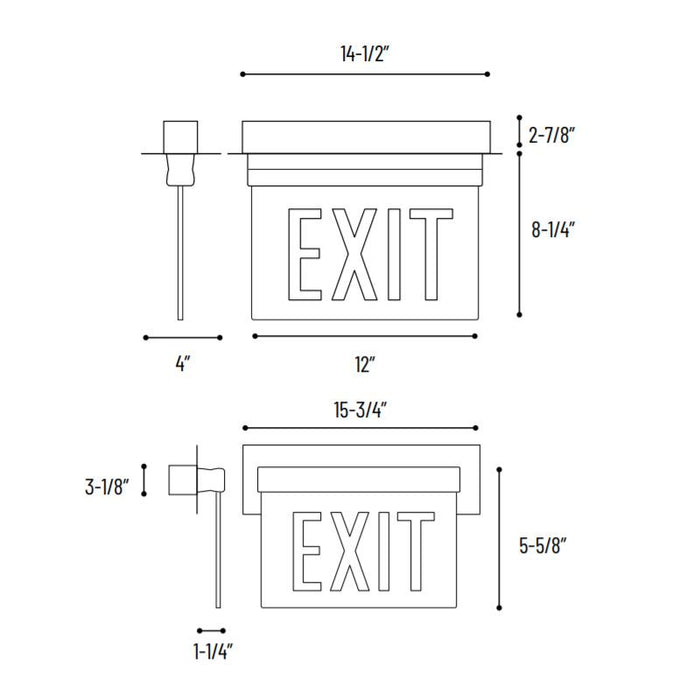

Dimensions

• Width: 12"

• Height: 8.25"
• Depth: 4"

Estimated Life

• Life Expectancy: 25 Years with no change in illumination

Warranty

• 5-Year Limited Warranty
• Complete warranty terms located at: https://noralighting.com/wp-content/uploads/2019/02/Limited-Warranty-Five-Year.pdf

Documents

• Spec Sheet
• Instruction Sheet
