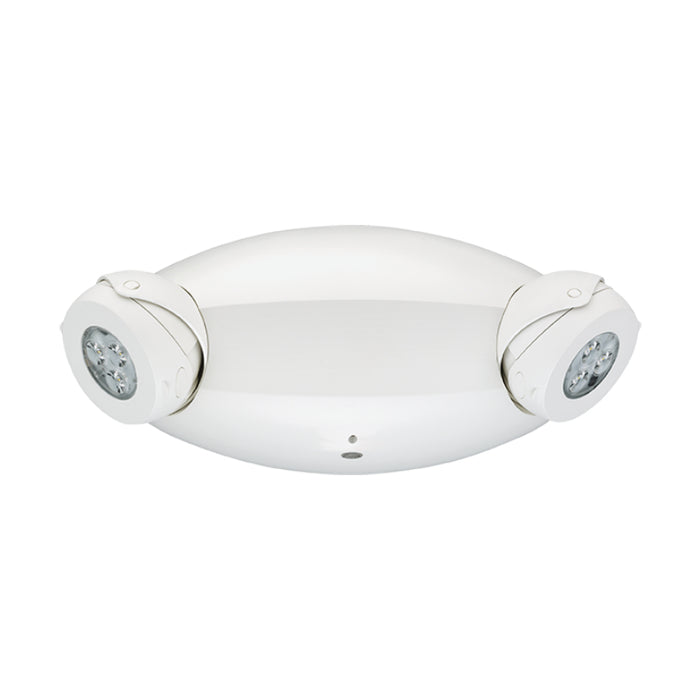

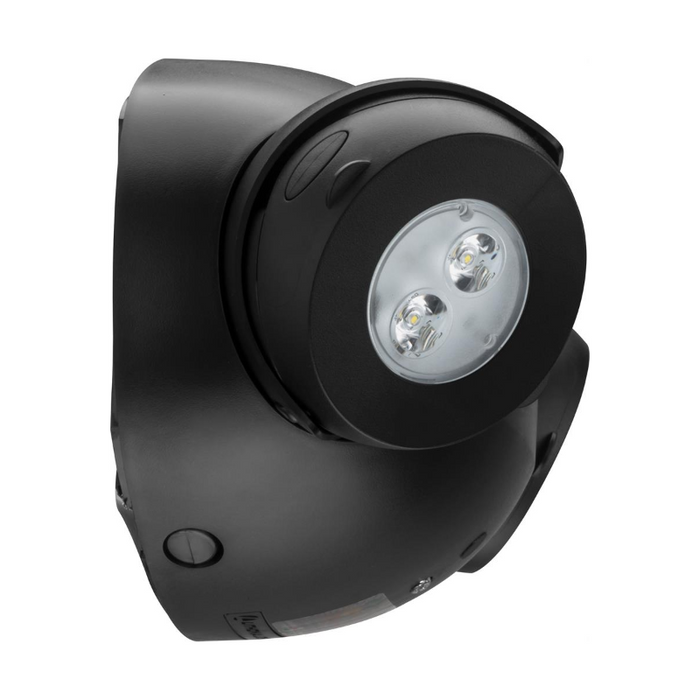

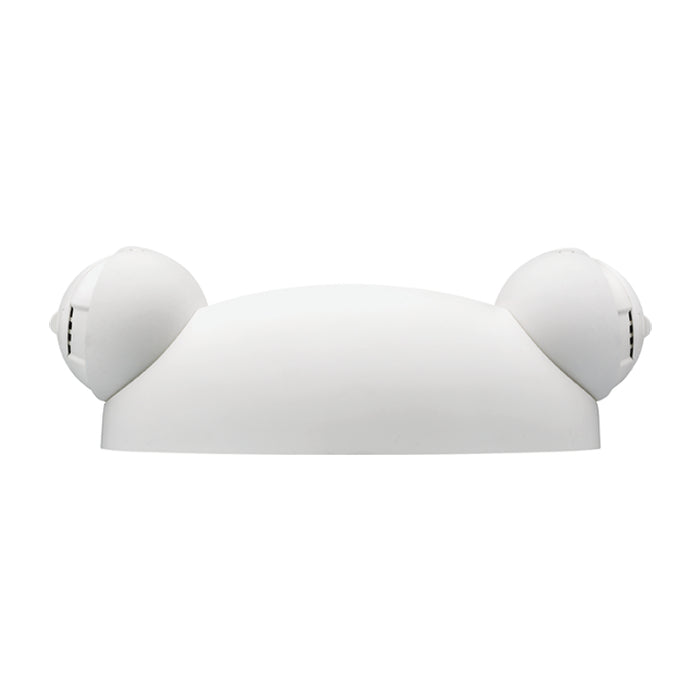

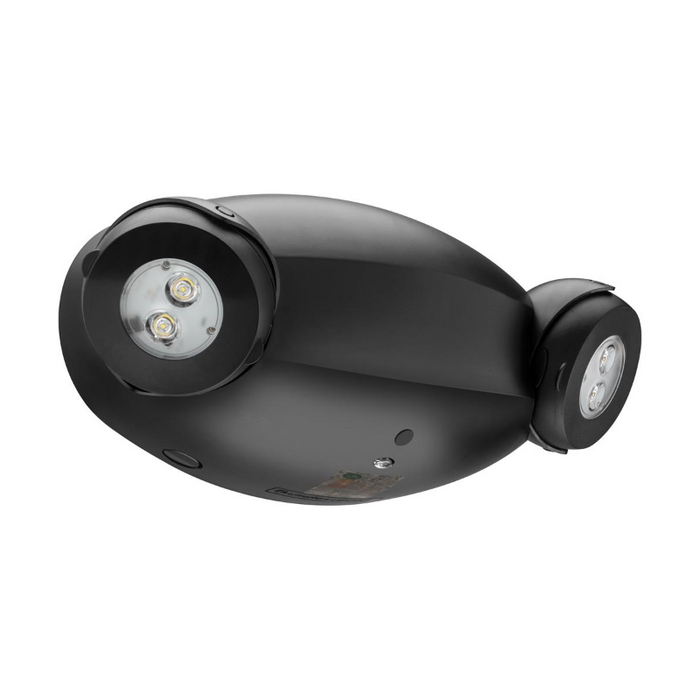

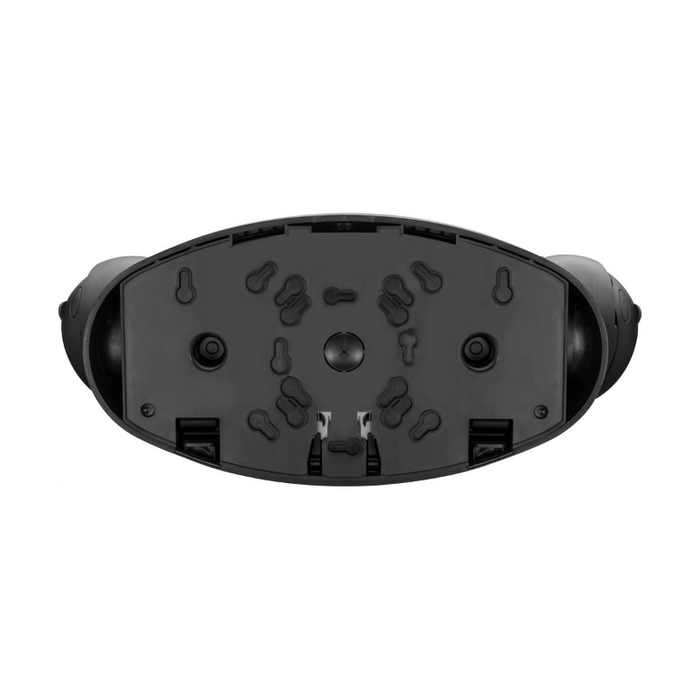

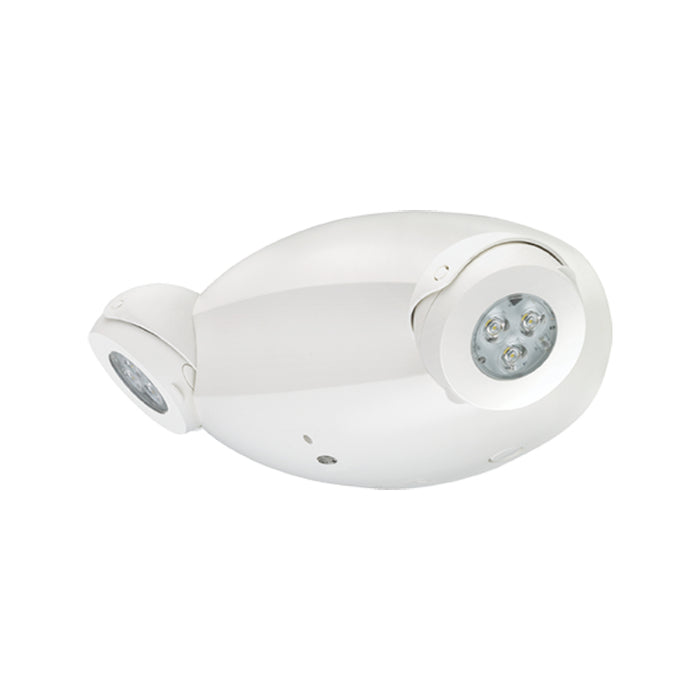

Lithonia ELM6L Quantum LED Adjustable Optics Emergency Light, Self-Diagnostics

The Lithonia Lighting® Quantum® ELM4L Emergency Light is suitable for emergency lighting applications such as stairways and hallways. Its high performance LED lamp heads makes the ELM4L ideal for safely illuminating the path of egress for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for 7.5’ to 24’ mounting heights. It can be wall or ceiling mounted and will provide 90 minutes of emergency power in the case of power loss.

Features

• Finish: White, Black

• Wattage: 10.6W

• Voltage: 120-347V
• Color Temperature: 5000K

• Lumens: 1100

• Adjustable Optics
• Battery Type: Lithium Iron Phosphate

• Automatic 24-hour recharge after a 90-minute discharge
• Self-diagnostic testing: Five minutes every 30 days and 90 minutes annually
• Diagnostic evaluation of lamps, AC to DC transfer, battery charging and condition of microprocessor
• Self-Diagnostics is required for the Automated Emergency Lighting Reporting option
• AELR option: STAR (Self-testing Automated Reporting) radio transmits monthly and annual test results and diagnostics information for automated reporting requirements
• Wall and ceiling mount standard

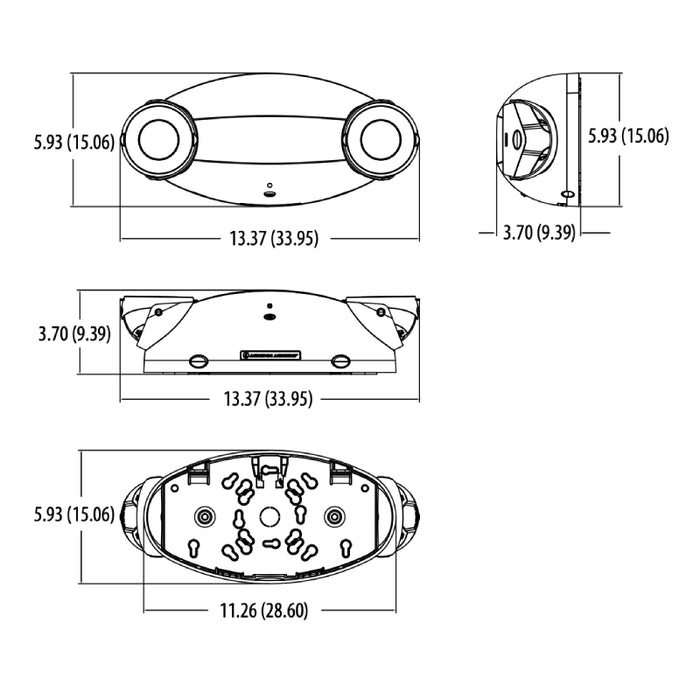

Dimensions

• Width: 13.38"
• Height: 5.94"
• Depth: 3.7"
• Weight: 3 lbs.

Warranty

• 5-Year Warranty

Document

• Spec Sheet
• Instruction Sheet
• Photometry & Revit (BIM)
• ELM4L Emergency Light .IES
• ELM4L Emergency Light BIM
