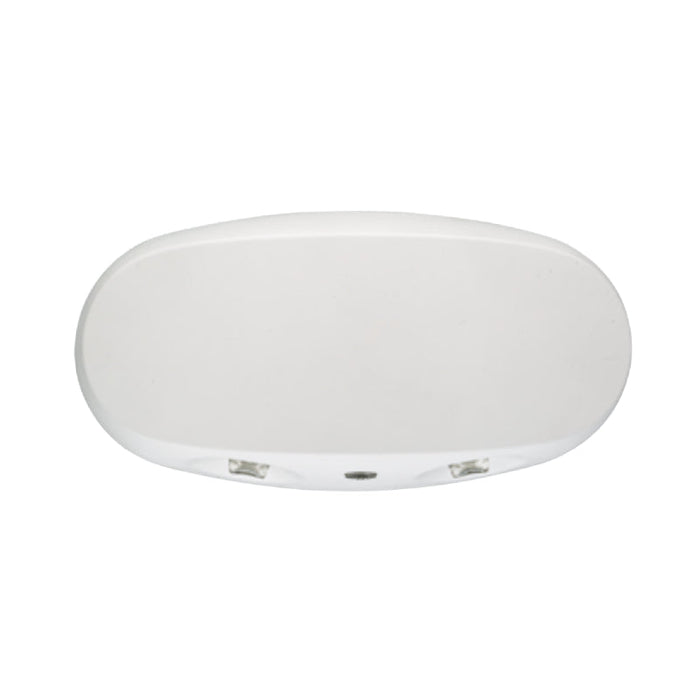

Lithonia ELM2LF Quantum LED Fixed Optics Emergency Light with Remote Capacity, Self-diagnostics

Provides a minimum of 90 minutes illumination for the rated wattage upon loss of AC power to meet and exceed code required emergency lighting. Ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for lower mounting heights.

Features

• Type: Fixed optics
• Housing Color: White
• Wattage: 2.4W
• Voltage: 120-347V
• Lumens: 220 lm
• Battery Type: Nicad
• Battery: Sealed, maintenance-free nickel-cadmium or Lithium Iron Phosphate
• Self-Diagnostics: Continuously monitors AC functionality. Test switch and remote tester (RTKIT accessory) provide manual activation of 30-second diagnostic testing for on-demand visual inspection. Standard derangement monitoring will indicate disconnected battery, charger failure and displays green flashing indicator light while in emergency mode. Single multi-chromatic LED indicator to display two-state charging, test activation and three-state self-diagnostics

Dimensions

• Width: 9.22"
• Height: 4.68"
• Depth: 4.68"
• Weight: 1.25 lbs


Warranty

• 5-year limited warranty

Document

• Spec Sheet
• Instruction Sheet
