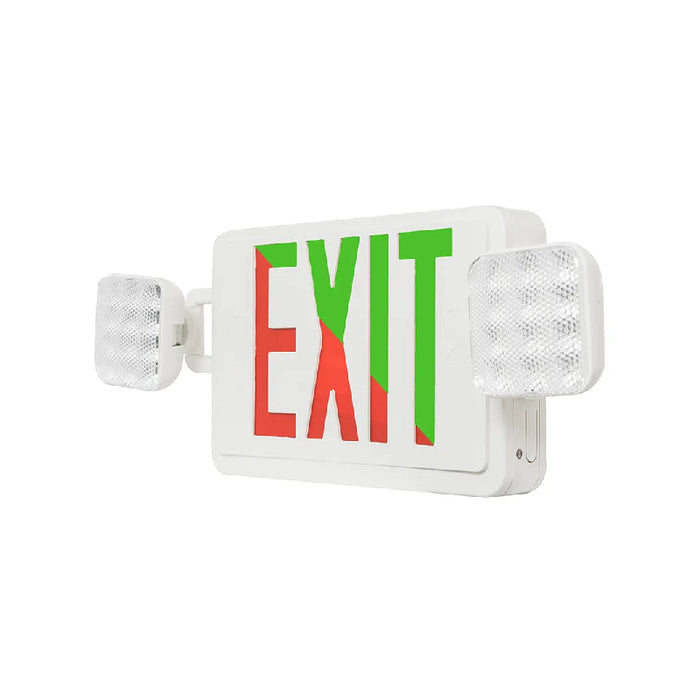

Westgate XTU-CL-EM-RC 2-in-1 LED Remote Capable Color-Selectable Universal Exit/Emergency Combo

Exit signs shall be provided at every exit door, at the intersection of corridors, at exit stairways or ramps and such other locations and intervals as are necessary to provide the occupants with knowledge of the various means of egress available.

Features

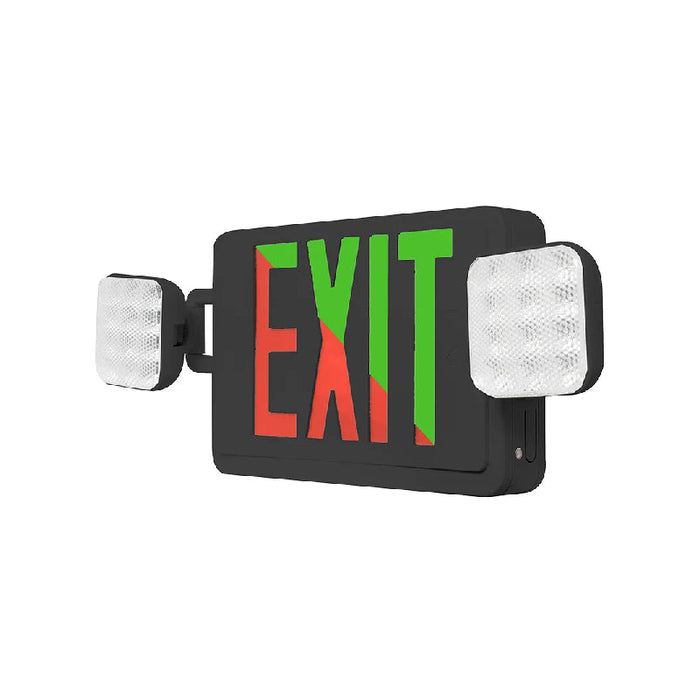

• Finish: White, Black

• Wattage: 2.4W Per Head

• Sign Wattage: 3.5W
• Input Power: 2.90-3.79W
• Voltage: 120-277V AC Dual Voltage Operation

• Color Temperature: 6132K

• Lumen: 8 (AC), 272 (DC)
• Fully Automatic Solid-State, Two Rate Charger Initiates Battery Charging to Recharge a Discharged Battery in 24 Hours
• Built-in 3.6V 1200mAh Ni-Mh Battery for Minimum 90 Minutes Emergency Operation
• Internal Solid-State Transfer Switch Automatically Connects The Internal Battery to LED Board for Minimum 90-Minute Emergency Illumination
• Charge Rate/Power “ON” LED Indicator Light And Push-to-Test Switch For Mandated Code Compliance Testing
• Injection-Molded Thermoplastic ABS Housing And Polycarbonate Cover, UL 94V-0 Flame Rating
• Remote Capable (designed with a high capacity battery backup system that is capable of powering one or more additional external emergency light remote heads for the 90 minute minimum emergency run time)
• Red & Green Lenses Are Included. The Default Is Red
• To Change Color Of The Sign Change The Lens & Flip The Color Switch Inside
• Single or Double Face (Universal)
• Letters 6” Height With 3/4” stroke

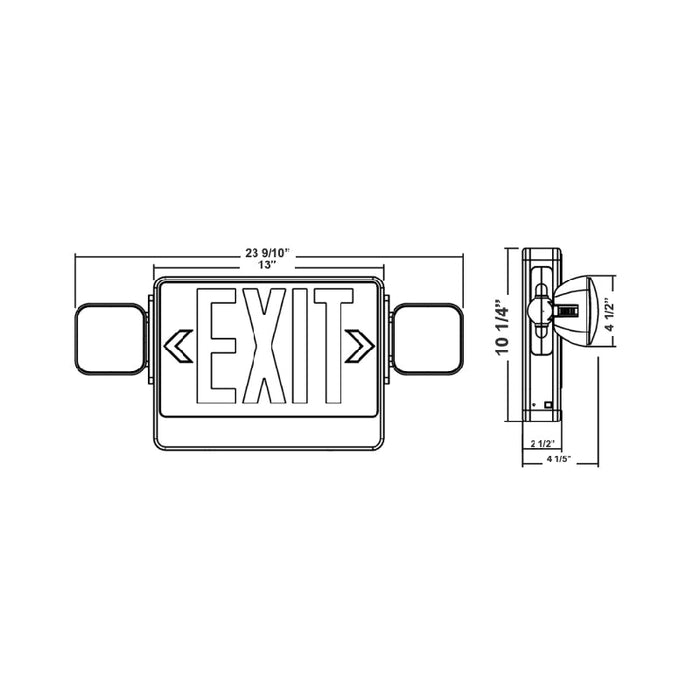

Dimensions

• Width: 23.9"

• Height: 10.25"
• Depth: 4.2"

Warranty

• 3-year warranty

Documents

• Spec Sheet
